The Lumipak Smart is a junction box designed for smart lighting, intended for discreet installation on building facades,
brackets, concrete poles or wooden poles.
Easy to install, it offers large capacities and can support a Zhaga node, ensuring the scalability of the LED system to remote management via a standardized Zhaga
socket, without changing the luminaire.
Its large capacity (8 modules) and high level of protection (IP54) make it a unique enclosure on the market.
Made from 100% recycled material, it is part
of a circular economy approach.

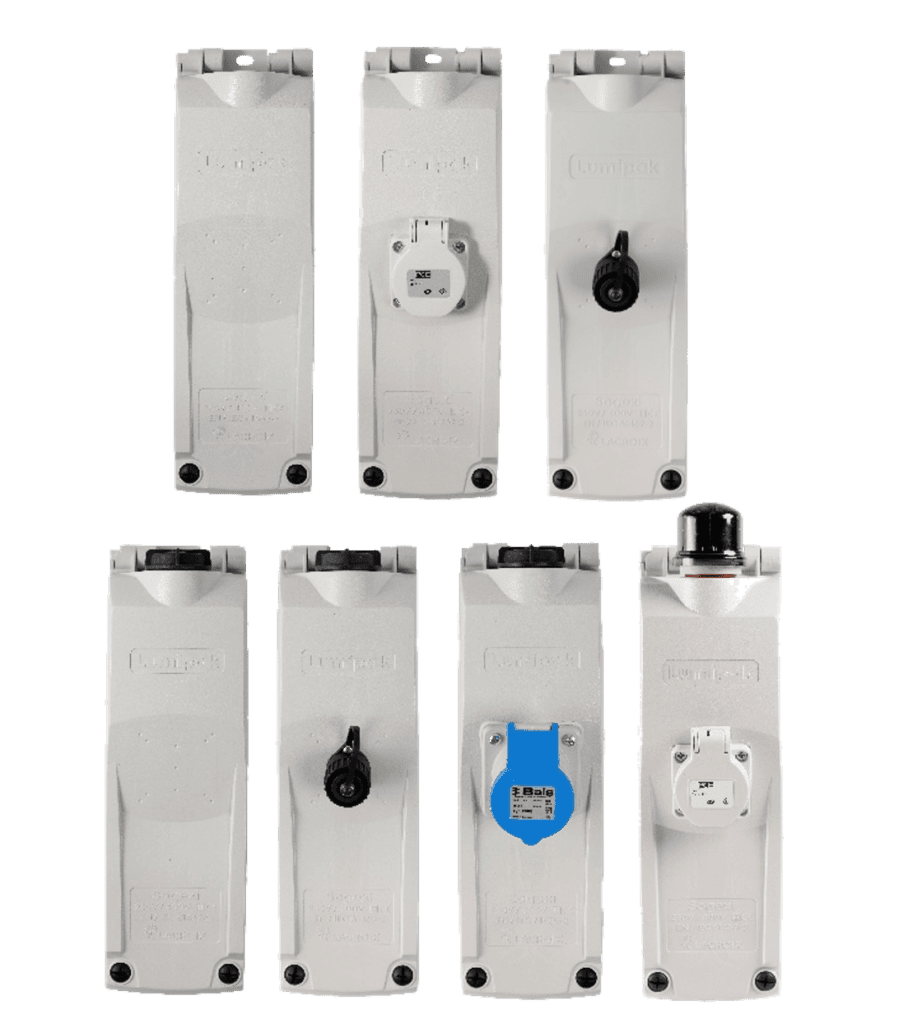

The Lumipak Smart is available in different versions with several possible connection types, including Zhaga:
- LDS : Large capacity for hosting and connection.
- LDS-P : With IP54 power outlet. Also available with a CEE plug.
- LDS-C : With Hirschmann connector for powering the lights.
- LDS-Z : With Zhaga connectors. Without an associated management node, it allows you to prepare the installation for RF remote management. With a Zhaga management node, it allows you to control the lantern via this node..
- LDS-ZP : With Zhaga connectors and an IP54 power outlet. Also available with a CEE plug.
- LDS-ZC : With Zhaga connector and Hirschmann connector.
Avantages
- A flexible and modular solution adapted to all implementation needs: large capacity (8 modules) and integration of various connections, including Zhaga.
- A junction box designed for optimal integration into the urban environment: discreet design, robustness, and waterproofing..
- Simple and secure installation: easy wall and pole mounting, intuitive implementation.
TECHNICAL CHARACTERISTICS
Maximum capacity:
- Up to 4 high modules (75 x 18 mm) + 4 low
modules (45 x 18 mm) - 3 cables up to Ø16 mm + 2 cables up to Ø14.5 mm
Mounting:
- Fixed installation, outdoor, by skilled persons
- By strap (max. 20 x 1 mm)
- By screw (max. Ø6)
- Installation on a flat surface or on a Pole (min.
Ø60 mm)
Housing:
- 100% recycled polycarbonate, UV-resistant and
self-extinguishing (UL94-V0) - IP54 according to EN 60529 (open enclosure:
IP2x) - IK08 according to EN 62262
- Class 2
- From -40°C to +120°C.
Electrical specifications:
- Rated voltage(Un) = 230 / 400 V
- Rated impulse withstand voltage (Uimp)
= 4 kV
Product standards:
- EN IEC 61439-2
Installation standard:
- NF C17-200, and associated guidelines
Standard color:
- Standard = Grey (type RAL 7035)

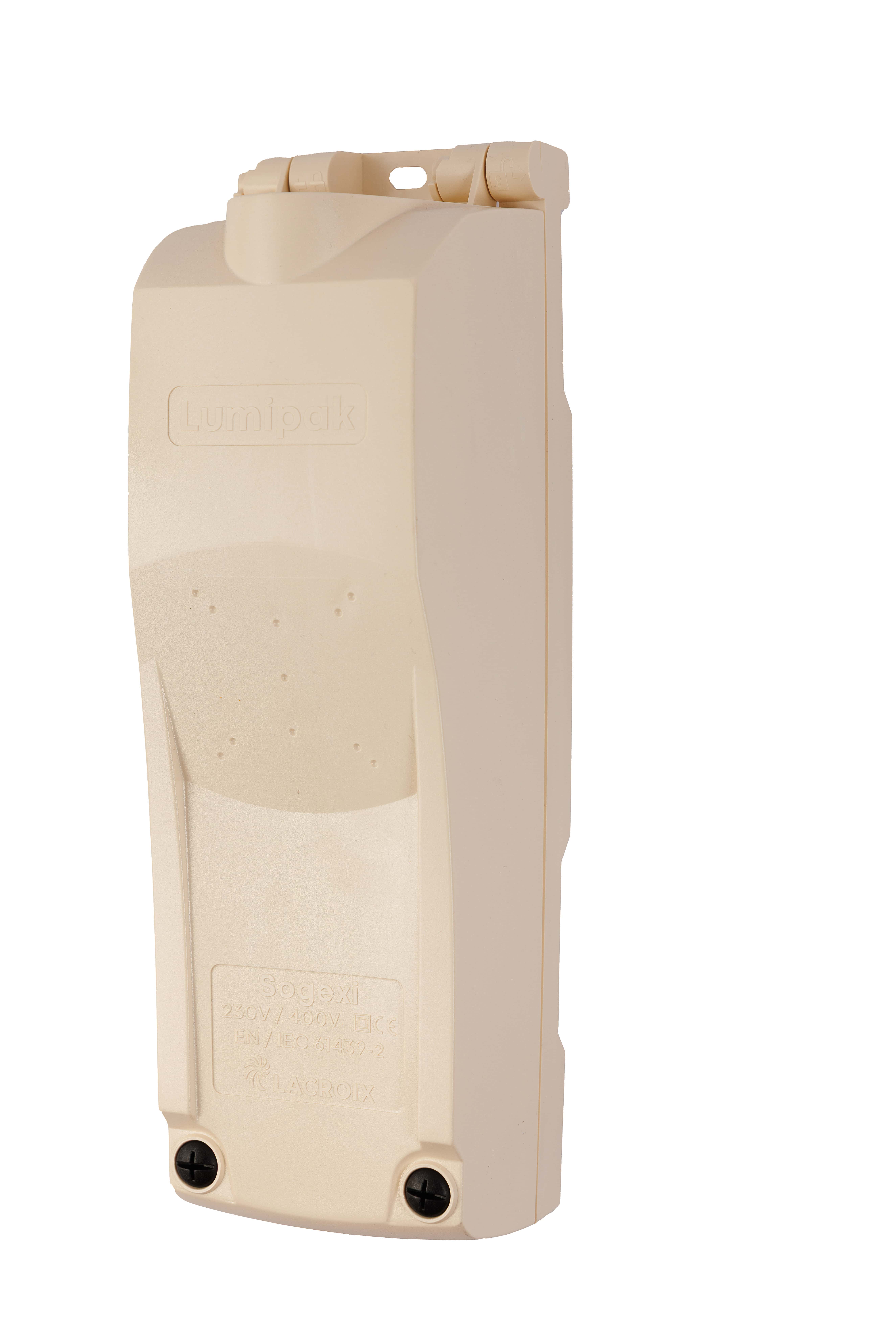

- Optional = Beige (type RAL 1015)
- Other colours: on request
