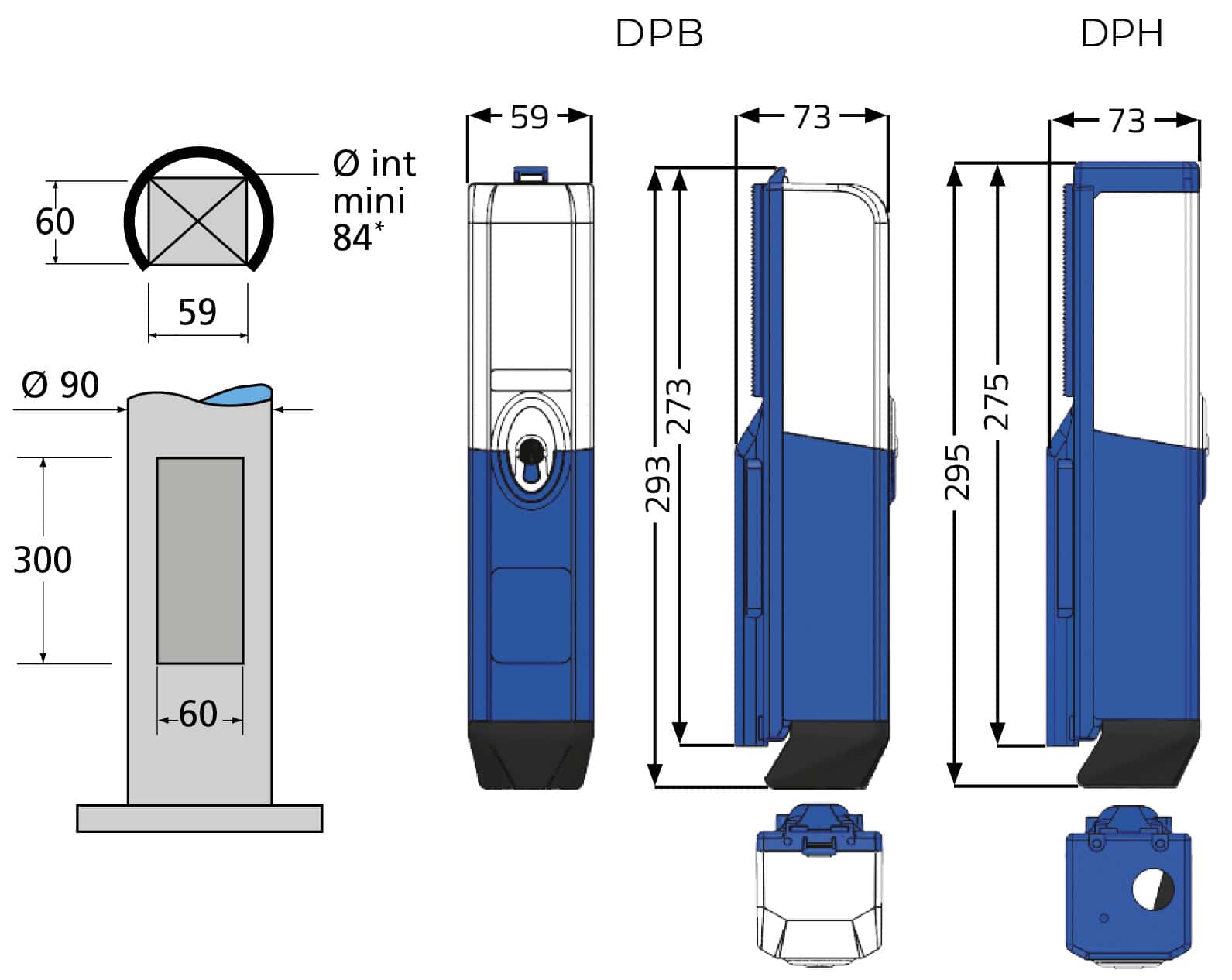

Even greater flexibility and ease of installation with the new Dynapak, for posts with a min. inner diameter of 84mm*.

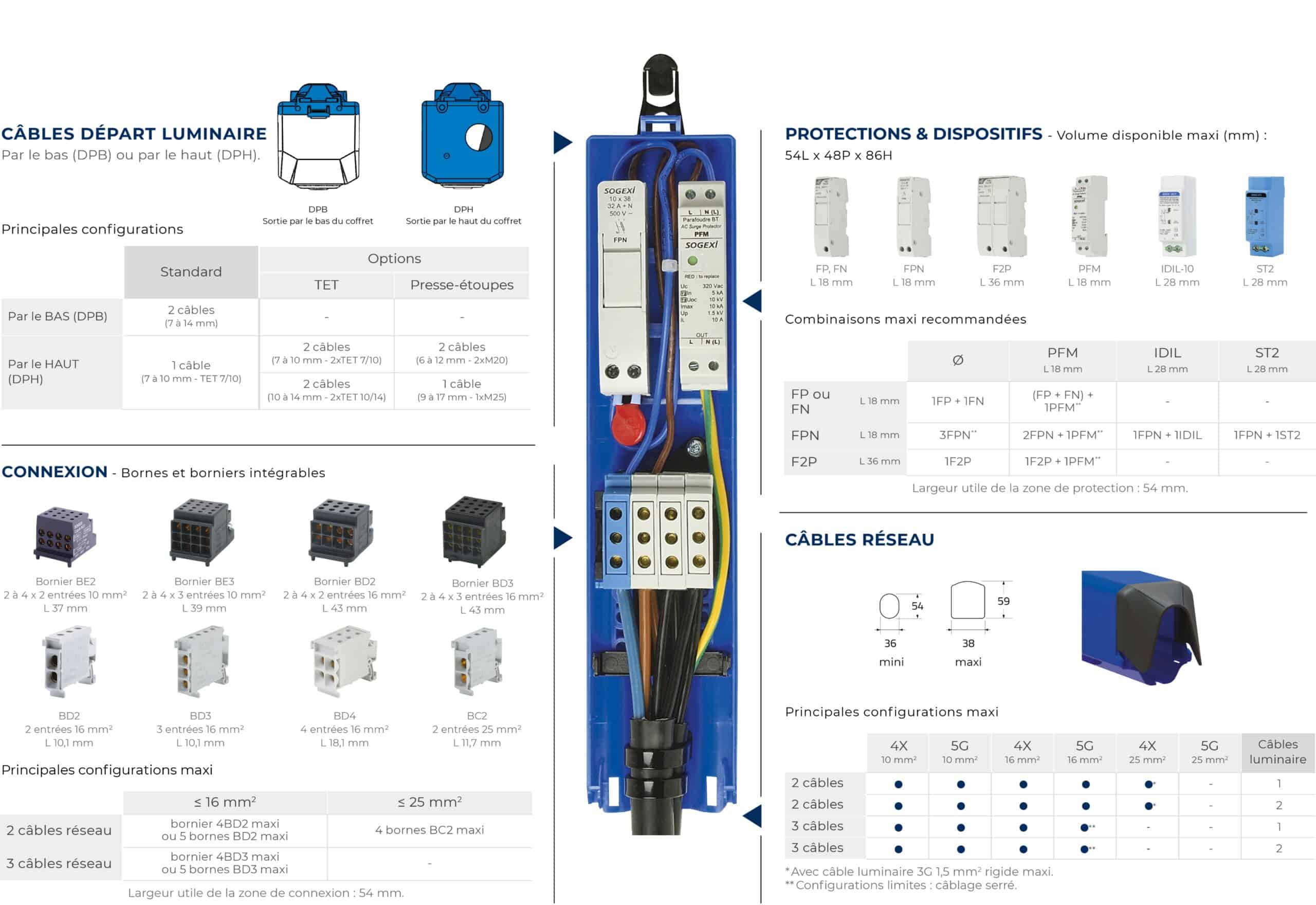

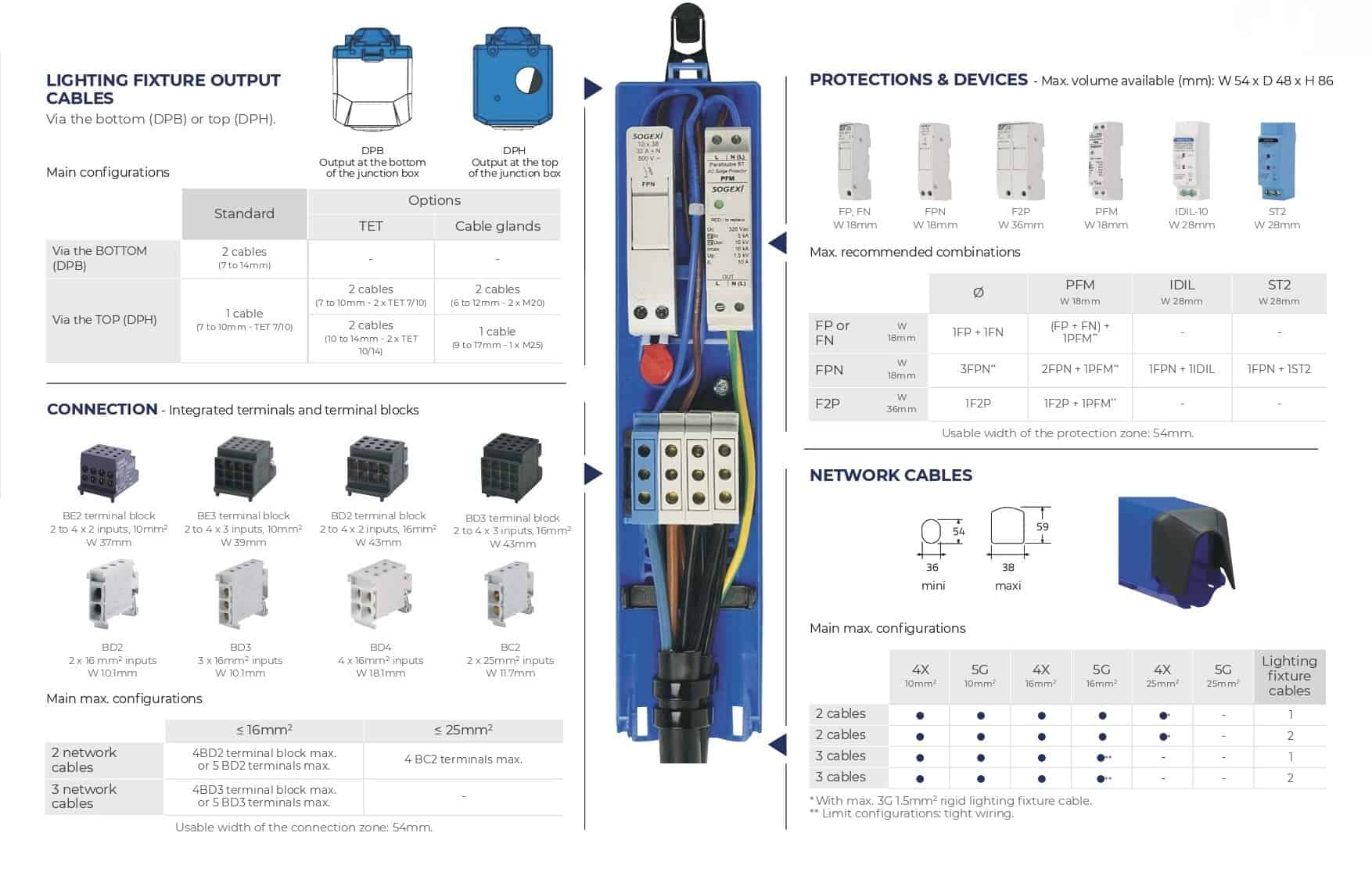

The Dynapak can connect up to 2 x 25mm² network cables or 3 x 16mm² network cables and 2 lighting fixture cable outputs.
Integration of devices such as ADD protection, ST2, remote management, etc. Open sides and stiffened back to facilitate connection.
Bottom cover easily fitted for secure maintenance of the connections.
Protective flexible cone to allow power cables to be inserted through the front.
Also available in a transparent version for optimal visibility.
Advantages
Terminal block support can be removed and height adjusted (two position levels), for easy connection and quick maintenance on site.
Transparent top cover to view and access protective devices. Central locking by ¼ turn captive screw.
Fixing bracket, tool-free adjustment over 110mm, with front or rear hooking.
Technical characteristics
Max. capacity:
- Up to 2 network cables, 4 x 25mm².
- Up to 3 x 5G16mm² network cables.
- Up to 2 x 3G2.5mm² lighting fixture cables.
Casing:
- Polycarbonate, self-extinguishing.
- IP44 in accordance with IEC 60529 (open junction box: IP2X).
- IK08 in accordance with EN 62262.
- Class 2.
- -40°C to +130°C.
Product standards:
- EN 61439-2.
Installation standards:
- NF C17-200 and associated guides.
Standard colour:
- Blue.
- Please contact us for other colours.
Mounting:
- Fixing bracket 1 or 2 hooks.
- Possible vertical rail mounting with M6 screws.
Optional:
- Terminal block: marking of the terminals to facilitate maintenance.
Delivery:
- Pre-wired with high-temperature silicone-coated wires and crimped lugs.
- Supplied with cartridge fuses, configuration labels and cable clamp.
