The EaZy-Pak is a standardised Zhaga socket that can accommodate a management node or a detection node.
It can be installed on light points not equipped with a Zhaga socket and is compatible with LACROIX TZX management node, as well as any other management or detection node on the market.
For correct operation, we recommend combining the EaZy-Pak with the PS-PAK, LACROIX +24V and DALI power supply module.
The EaZy-Pak is available in two versions:
- One connector: for management or detection only.
- Two connectors: for management and detection.
Advantages
Optimised design and easy to install.
Compatible with all types of Zhaga management or detection nodes.
Compatible with all types of installation: management or detection.
Imagined for urban environments.
Technical data
Mechanical characteristics:
- Protection class: IP55 in accordance with EN/IEC 60529.
- Resistance to external mechanical impact : IK08 in accordance with EN/IEC 62262.
- Operating temperature: -25° to +50°C.
- Main shell material: recycled polypropylene (minimum 80 %) – black only.
- Maximum Zhaga node size : Ø 90 mm

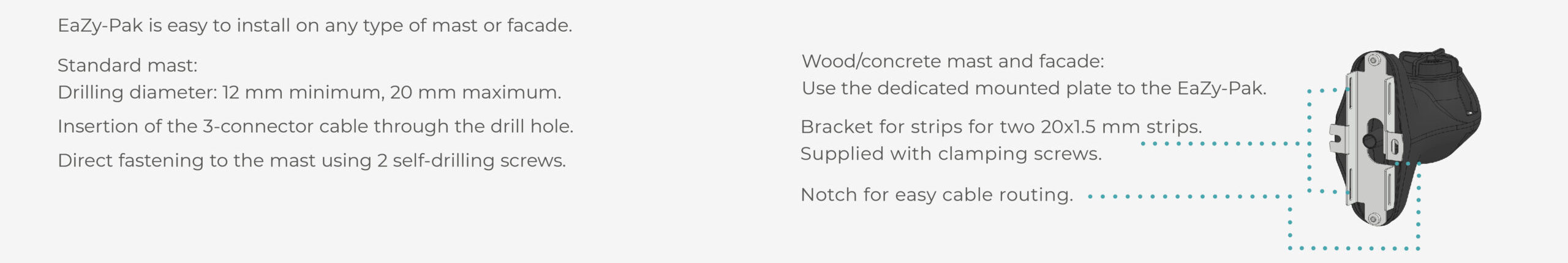

Installation:
- Cable included: 5 metres with 3 conductors (other lengths on request).
- Steel mast mounting : 2 self-drilling Ø4.8×25 mm screws supplied.
- Mounting on wood/concrete masts or facades: use the dedicated mounting plate
Type of connection and power supply:
- Power supply: +24VDC.
- 0.75 mm² cables.
- Pre-insulated end caps
Installation
Possible synergy with EaZy-Pak

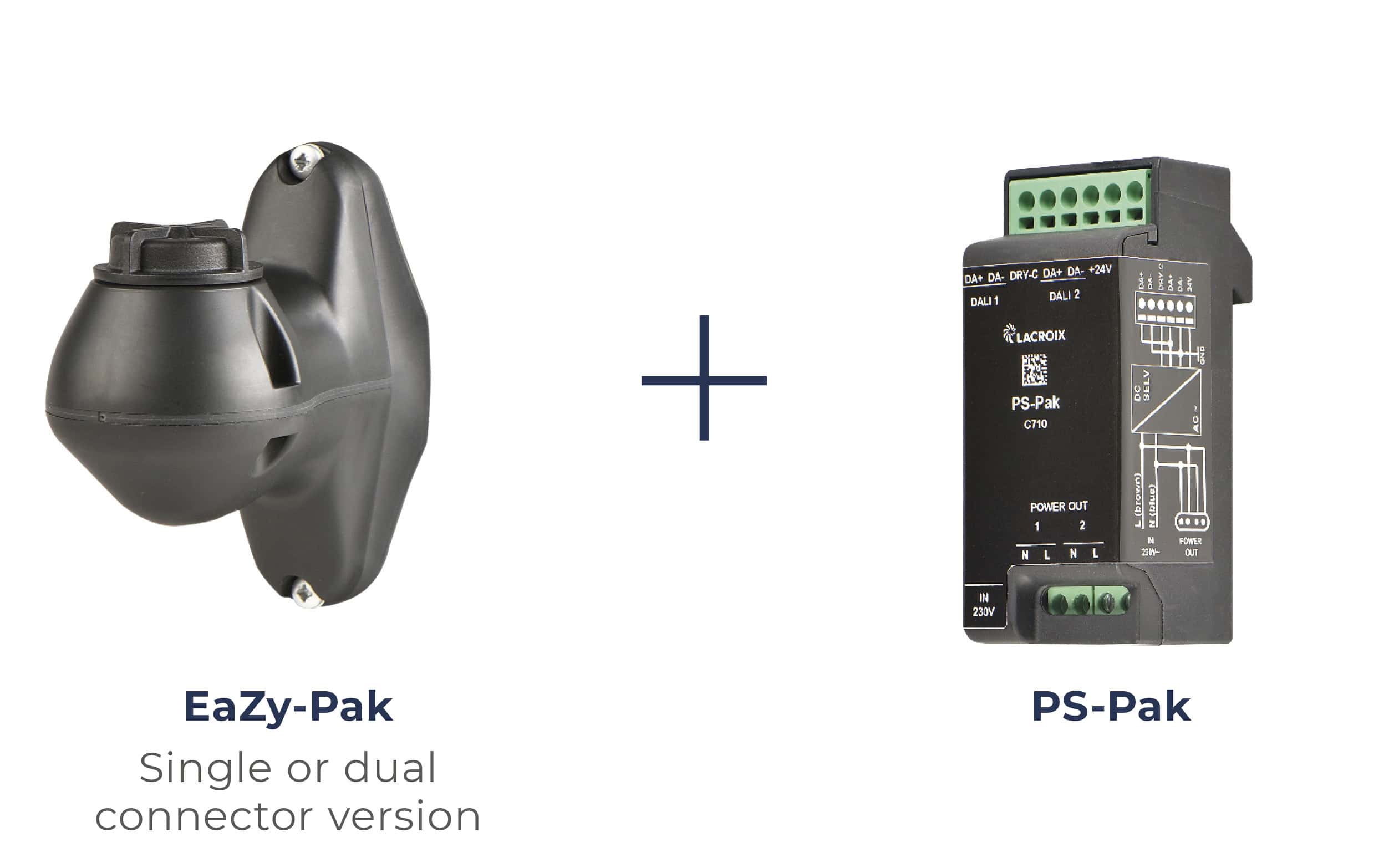

PS-Pak and EaZy-Pak, this association allows you to pre-equip the light point in 24V power source and a Zhaga socket outside the lantern.
Ideal to:
- Pre-equip the light point with to anticipate remote management.
- Meet the needs of customers looking to modernize or renovate their light points with a remote management and/or detection solution.
Pour la gestion connectée, optez pour l’offre LACROIX Tegis Lighting Plus avec le nœud TZX associé à une unité de contrôle Tegis et un module d’extension RF.
Le TZX et l’unité de contrôle Tegis permettent le pilotage et la surveillance de l’armoire et des points lumineux.
