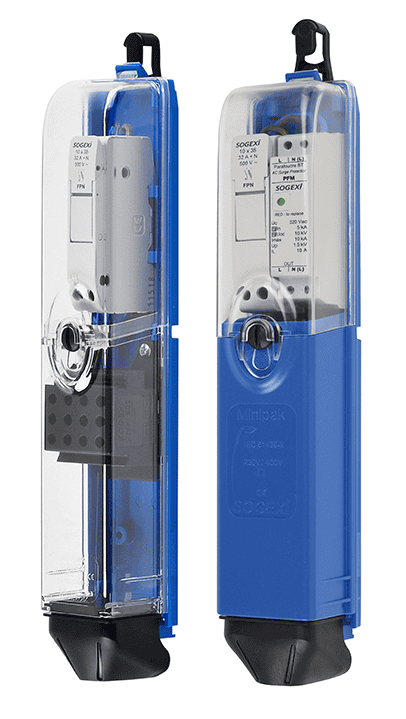

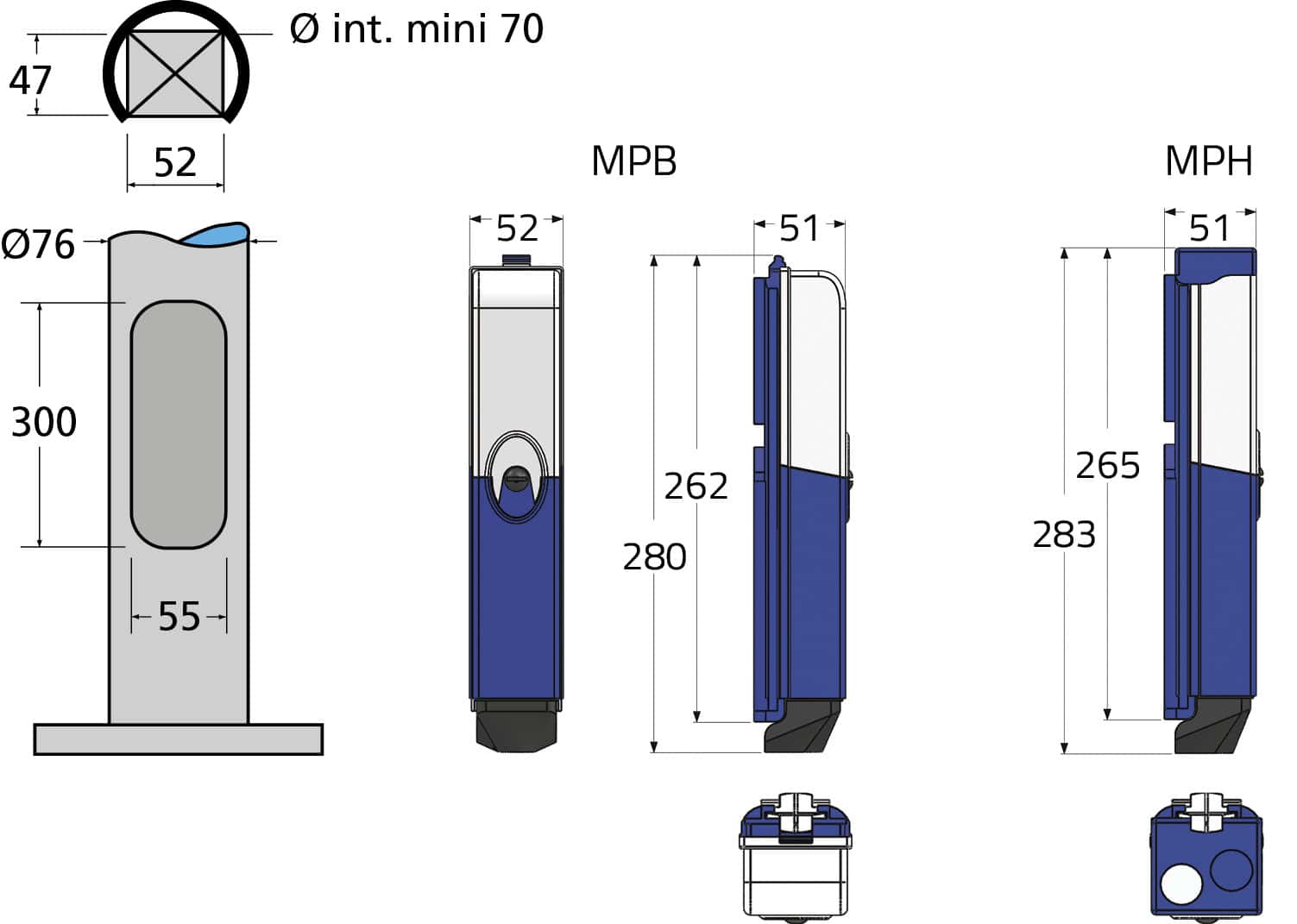

The benchmark in lamppost base junction boxes, for posts with very small cross-sections: int. Ø 70mm min.
The Minipak can connect up to 3 x 10mm² network cables or 2 x 16mm² network cables and 2 lighting fixture cables.
Open sides and stiffened back to facilitate
connection.
Bottom cover easily fitted for secure maintenance of the protective devices.
Protective flexible cone to allow power cables to be inserted through the front.
Advantages
Very compact.
Extractable terminal blocks with centring stud and fastening screws.
Transparent top cover to view and access protective devices. Central locking by ¼ turn captive screw
Bracket on bar, tool-free adjustment over 110mm, with front or rear hooking.
Technical characteristics

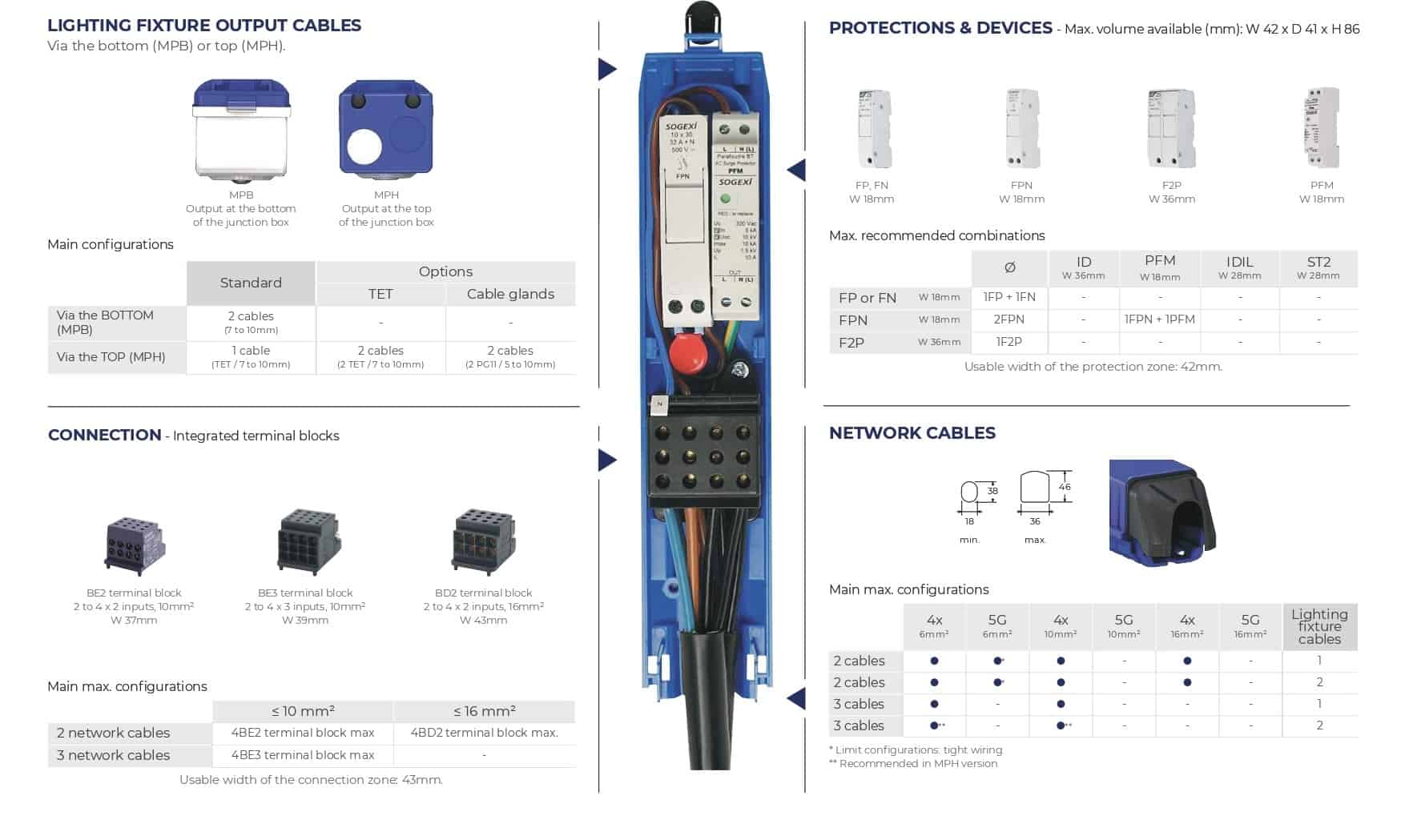

Max. capacity:
- Up to 3 x 10mm² network cables.
- Up to 2 x 16mm² network cables.
- Up to 2 x 3G1.5mm² rigid lighting fixture cable
Casing:
- Polycarbonate, self-extinguishing.
- IP44 in accordance with IEC 60529
(open junction box: IP2X). - IK08 in accordance with EN 62262.
- Class 2 (can also be supplied
with insulated earth terminal).
Product standards:
- EN 61439-2.
Installation standards:
- NF C17-200 and associated guides.
Standard colour:
- Bleu et beige.
- Please contact us for other colours.
Mounting:
- Fixing bracket 1 or 2 hooks.
- Possible vertical rail mounting with M6 screws.
Optional:
- Terminal block: marking of the terminals to facilitate maintenance.
Delivery:
- Pre-wired with high-temperature siliconecoated wires and crimped lugs.
- Supplied with cartridge fuses and configuration labels.
