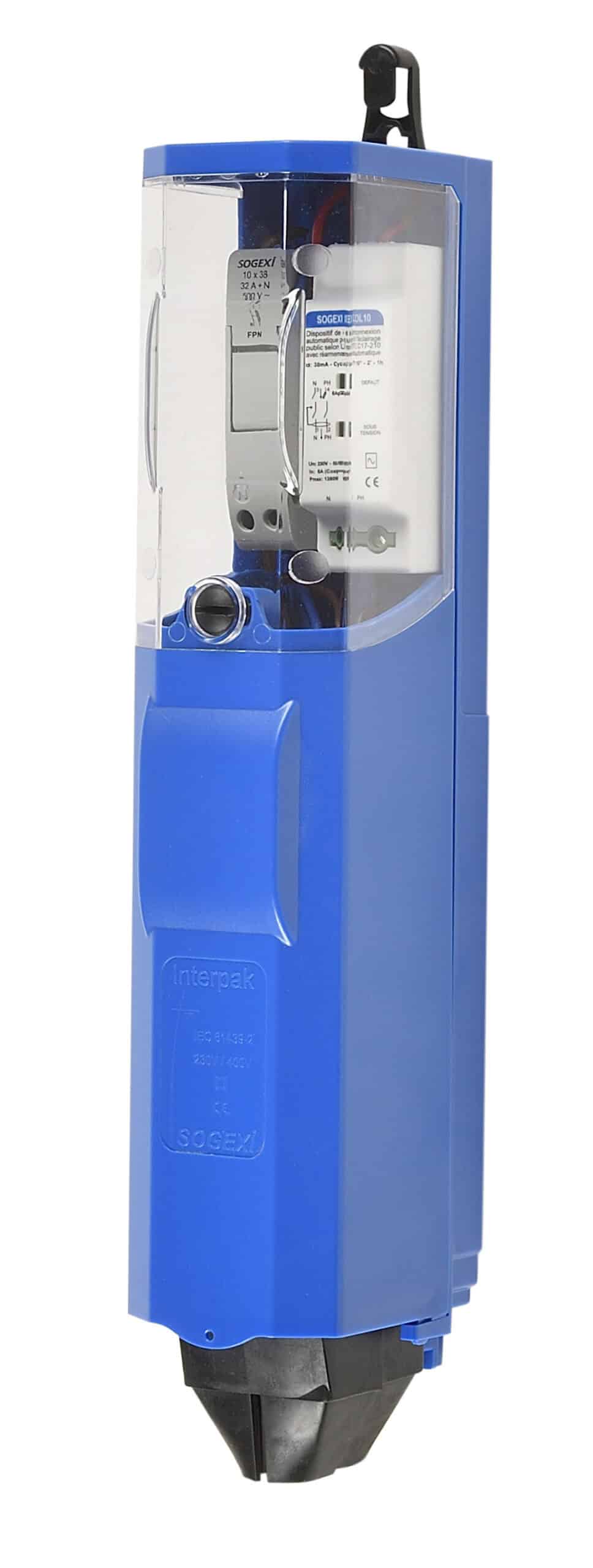

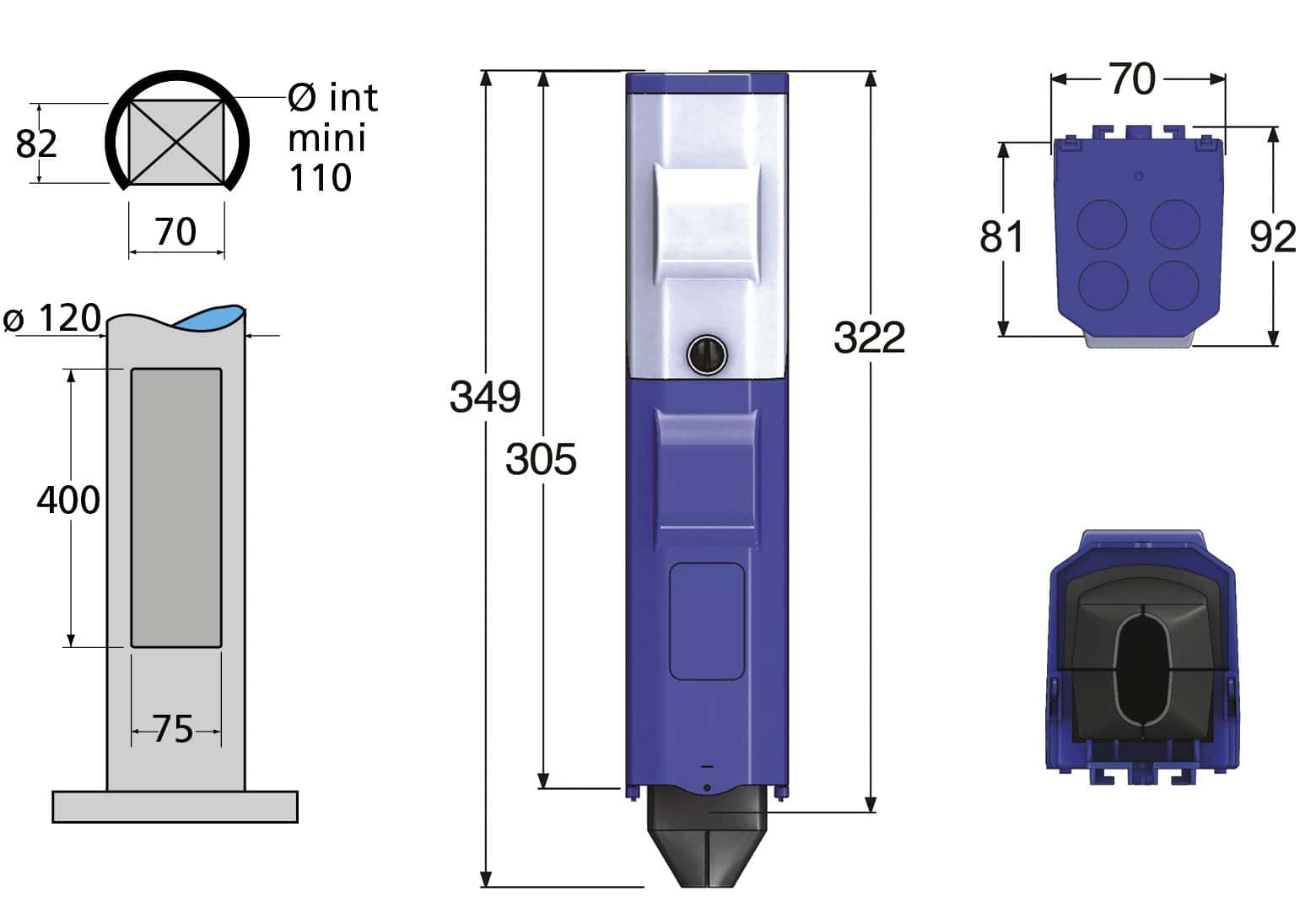

The lamppost junction box designed with 3 stages to increase enclosing capacity in posts with a minimum internal diameter of 110 mm.
Interpak can accept up to two 35mm² network cables or three 25mm² network cables and four lighting fixture cables.
Protective cone for frontal insertion of power cables.
Additional intermediate support, for extra functions.
Open sides and stiffened back to facilitate connection.
Two independent covers for easy opening even when the box is offset from the door.
Bottom cover clipped onto the base of the box for secure maintenance.
Advantages
Terminal block support can be removed tool-free and adjusted over 80mm via a rack system, for easy connection and quick maintenance on site.

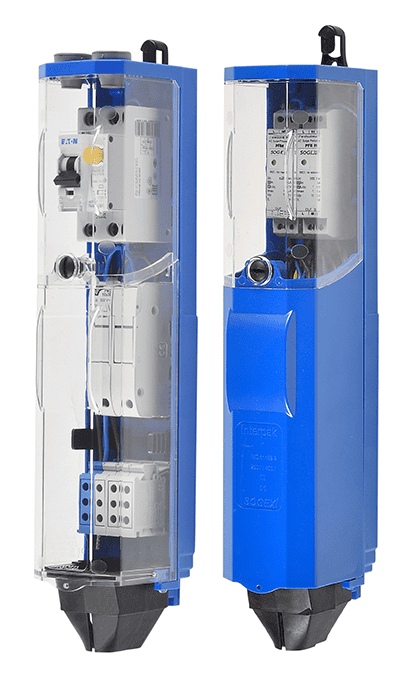

Transparent top cover, to facilitate visual inspection and access to protective devices.
Locking by ¼ turn captive screw.
Tool-free mounting by brackets adjustable over 110mm, or with M6 screw.
Technical characteristics

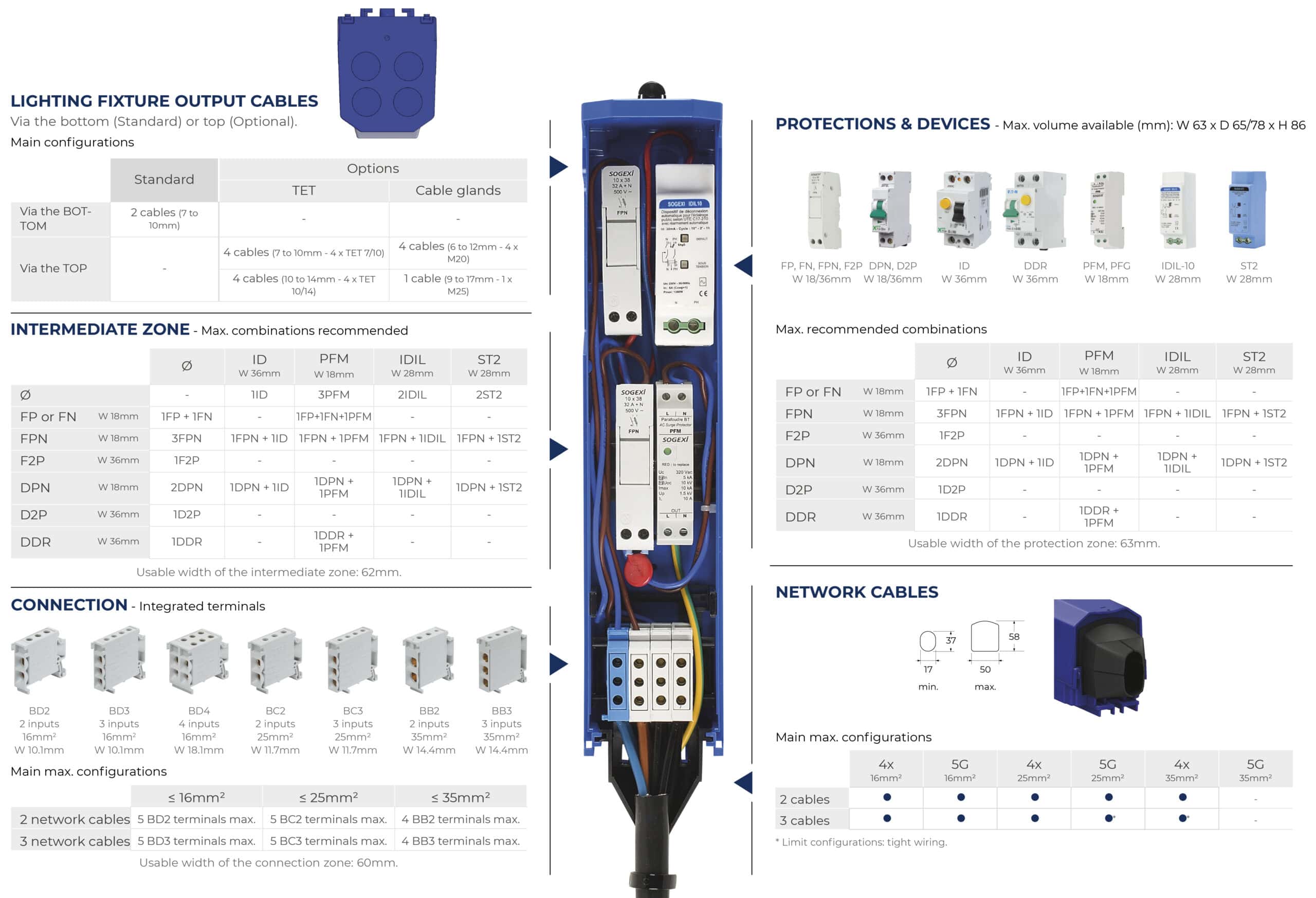

Max. capacity:
- Up to 2 x 5G25mm² or 4 x 35mm² network cables.
- Up to 3 x 5G16mm² or 4 x 25mm² network cables.
- Up to 4 x 3G2.5mm² rigid lighting fixture cables.
Casing:
- Polycarbonate, self-extinguishing.
- IP44 in accordance with IEC 60529 (open junction box: IP2X).
- IK08 in accordance with EN 62262.
- Class 2 (can also be supplied with insulated earth terminal).
- -40°C to +130°C.
Product standards:
- EN 61439-2.
Installation standards:
- NF C17-200 and associated guides.
Standard colour:
- Blue
- Please contact us for other colours.
Mounting:
- Fixing bracket 1 or 2 hooks.
- Possible vertical rail mounting with M6 screws.
Optional:
- Terminal block: marking of the terminals to facilitate maintenance.
Delivery:
- Pre-wired with high-temperature silicone-coated wires and crimped lugs.
- Supplied with cartridge fuses, configuration labels and cable clamp.
