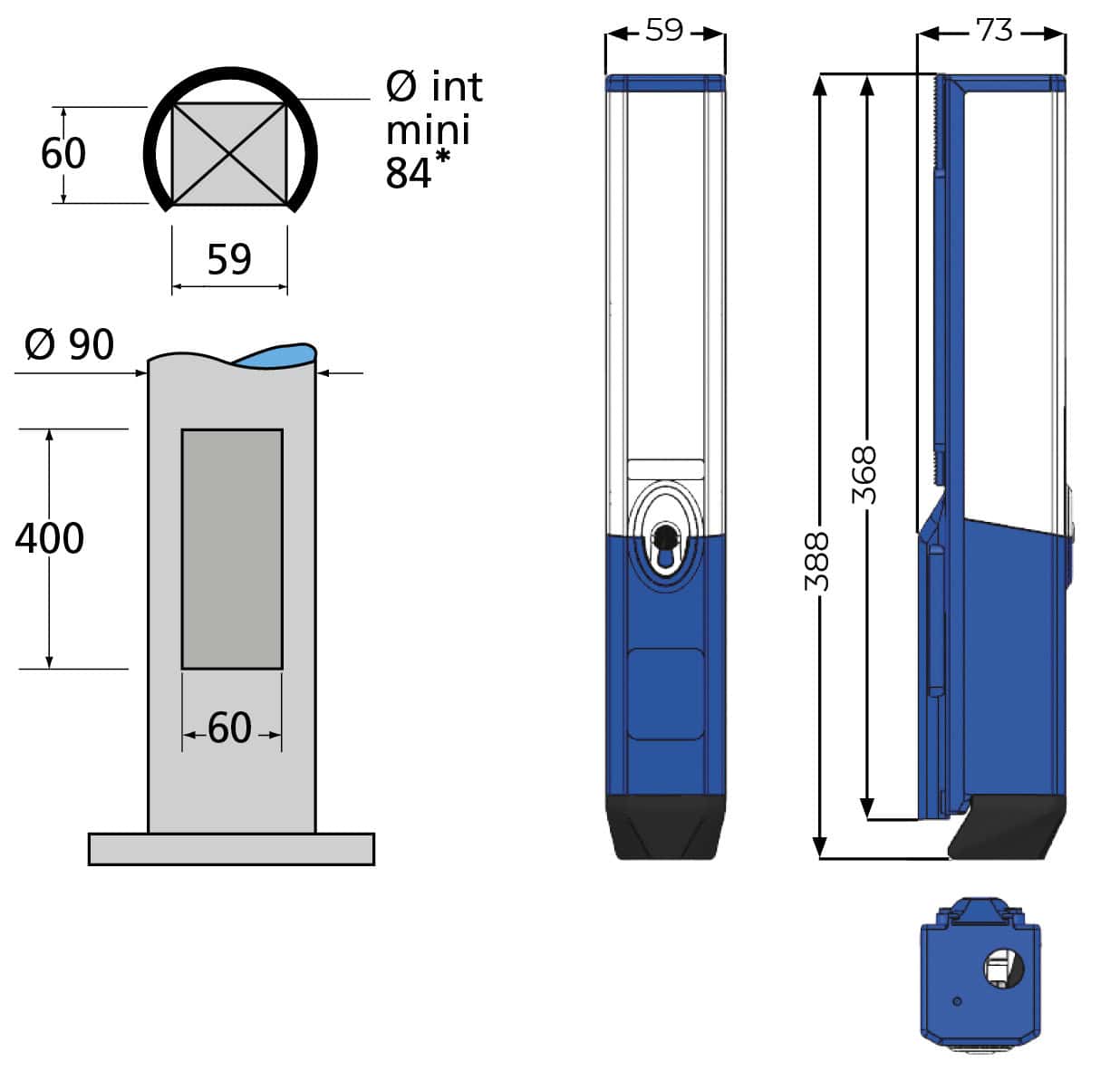

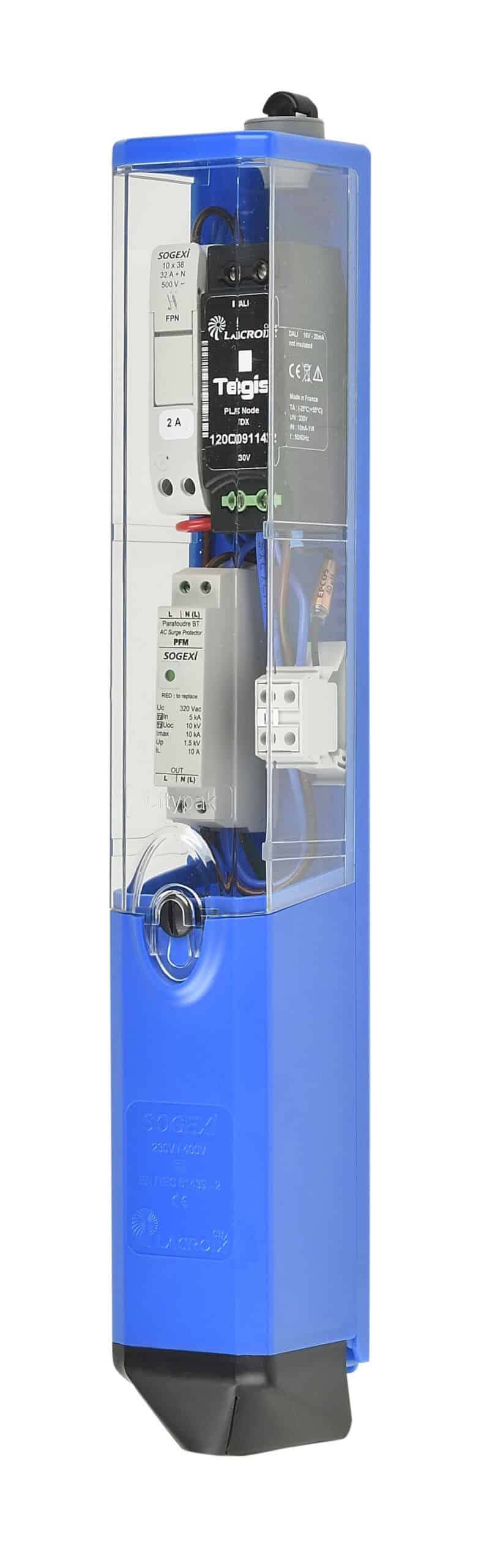

The lamppost junction box that is entirely dedicated to smart lighting for posts with a min. inside diameter of 84mm*.
The Citypak can connect up to 2 x 25mm² network cables or 3 x 16mm² network cables and 2 lighting fixture cable outputs.
Up to 4 functions at the same time (connecting, protecting, managing and detecting): flexibility and scalability for smart lighting.
Open sides and stiffened back to facilitate connection.*
Bottom cover easily fitted for secure maintenance of the connections.
Protective flexible cone to allow power cables to be inserted through the front.
For vertical rail (rail-C): Min. int. Ø 89mm.
Advantages
Three stages: the highest enclosing capacity on the market for small posts.
Long transparent top cover to view and access two stages of protections.
Central locking by ¼ turn captive screw.
Fixing bracket, tool-free adjustment over 170mm, with rear hooking.
Technical characteristics

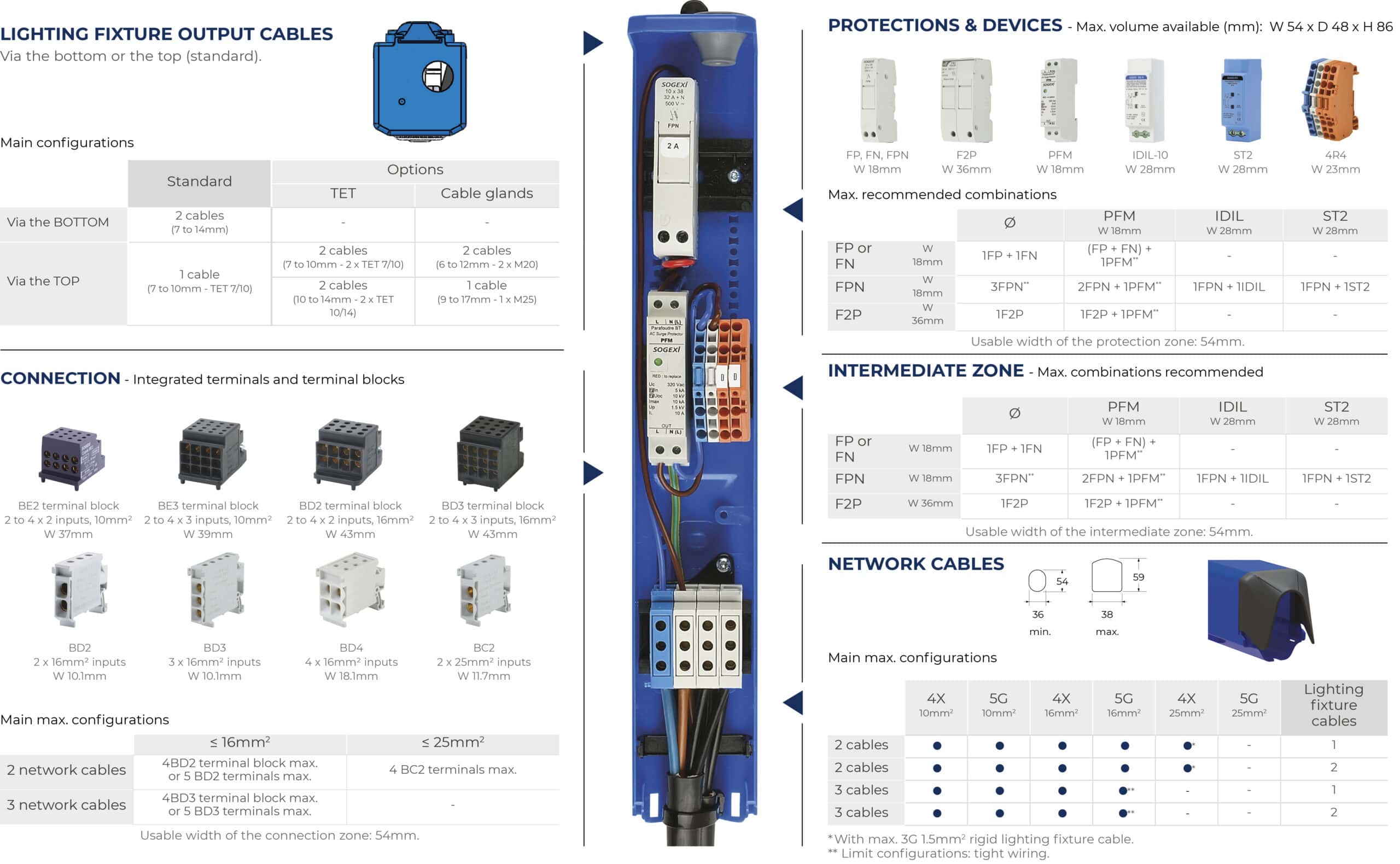

Max. capacity :
- Up to 2 network cables, 4 x 25mm².
- Up to 3 x 5G16mm² network cables.
- Up to 2 x 3G2.5mm² lighting fixture cables.
Casing:
- Polycarbonate, self-extinguishing.
- IP44 in accordance with IEC 60529 (open junction box: IP2X).
- IK08 in accordance with EN 62262.
- Class 2.
- -40°C to +130°C.
Product standards:
- EN 61439-2.
Installation standards:
- NF C17-200 and associated guides.
Standard colour:
- Blue
- Please contact us for other colours.
Mouting:
- Fixing bracket 1 hook.
- Possible vertical rail mounting with M6 screws.
Optional:
- Terminal block: marking of the terminals to facilitate maintenance.
Delivery:
- Pre-wired with high-temperature siliconecoated wires and crimped lugs.
- Supplied with cartridge fuses, configuration labels and cable clamp.
