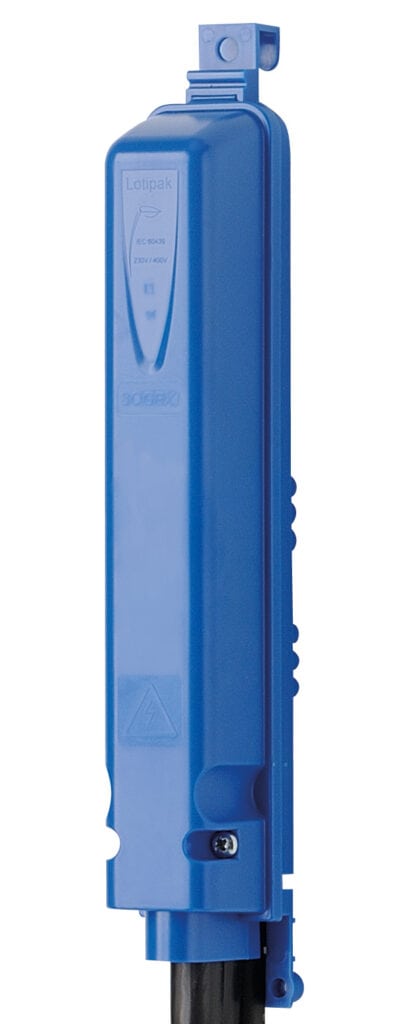

The Lotipak, the small model for masts with small inscribed squares
The junction boxes Lotipak is designed to offer a compact, high-performance solution, ideal for installations on masts with small inscribed squares . Its minimal required space makes it easy to integrate, while guaranteeing reliable protection for electrical equipment.

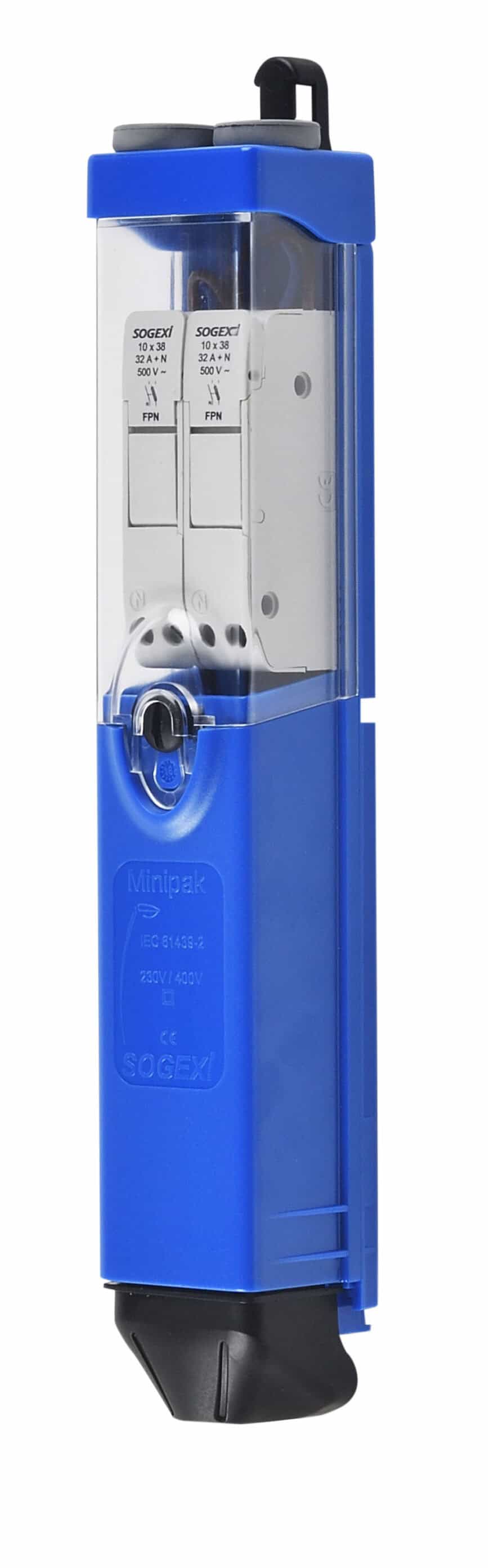

The Minipak, the essential compact enclosure!
The Minipak junction boxes is designed for masts with very small inscribed squares (min. 70 mm inside diameter), and can be used to connect up to 3 x 10 mm² power cables or 2 x 16 mm² cables and 2 luminaire cables. With small required space, extractable terminals and a transparent top cover for quick visualization of protection status and fast, safe maintenance. Available with top or bottom lamp outlet, it features a tool-free, adjustable mounting system.

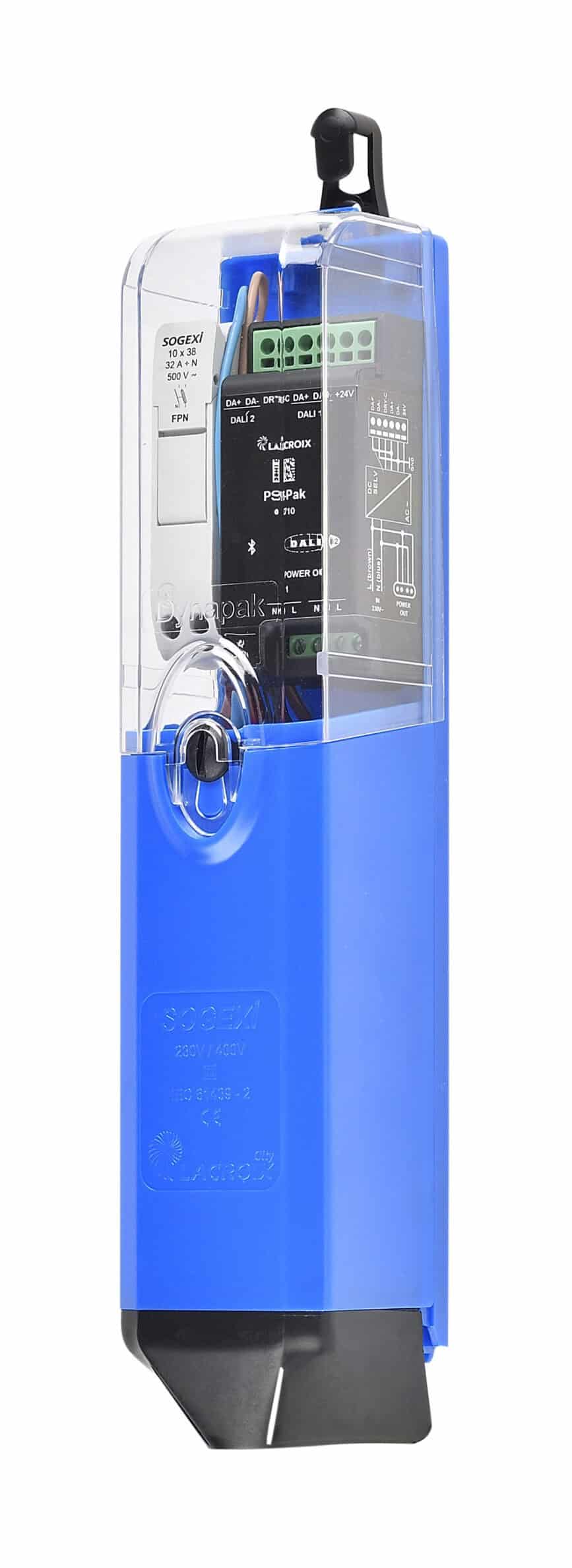

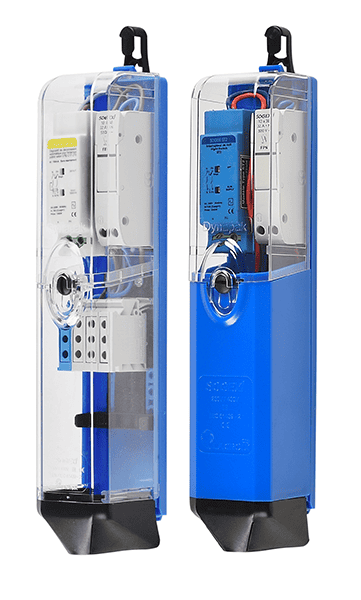

Dynapak, the flexible junction box for simplified connection
The junction boxes Dynapak is designed for masts with a minimum internal diameter of 84 mm, allowing connection of up to 2 x 25 mm² power cables or 3 x 16 mm² cables with 2 outlets for lighting cables. It offers flexible installation thanks to a removable, height-adjustable terminal support. It also features a transparent top cover for easy access to protections and secure maintenance. Available in versions with bottom or top lamp output, it also integrates features such as DDA protection and remote management via the TNX24 management node.

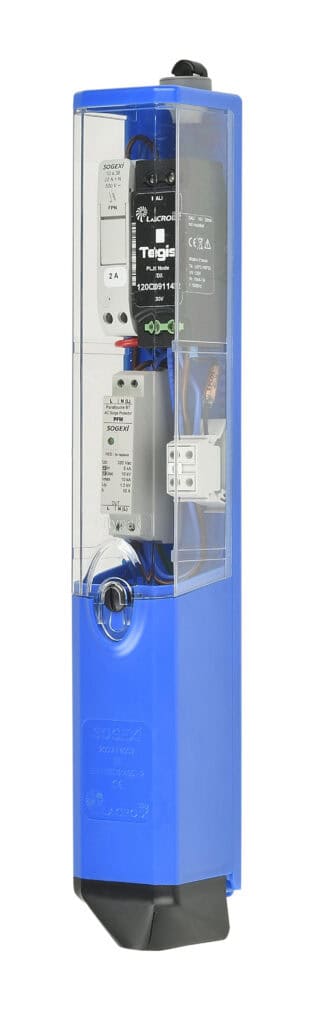

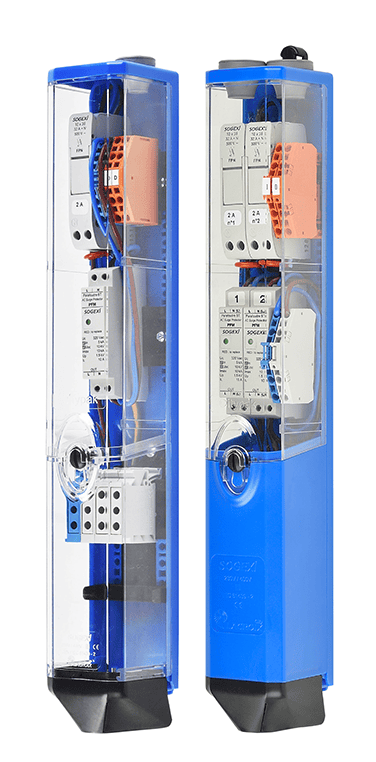

Citypak, smart lighting for small masts!
The Citypak is a junction box designed for smart lighting, specifically adapted to masts with a minimum internal diameter of 84 mm and reduced height. It can be used to connect up to 2 x 25 mm² cables or 3 x 16 mm² cables, while integrating up to four essential functions: connection, protection, management and detection. Its long, high, transparent cover makes it easy to see where the protection is located, while its tool-free, adjustable fixing system ensures fast, safe installation.

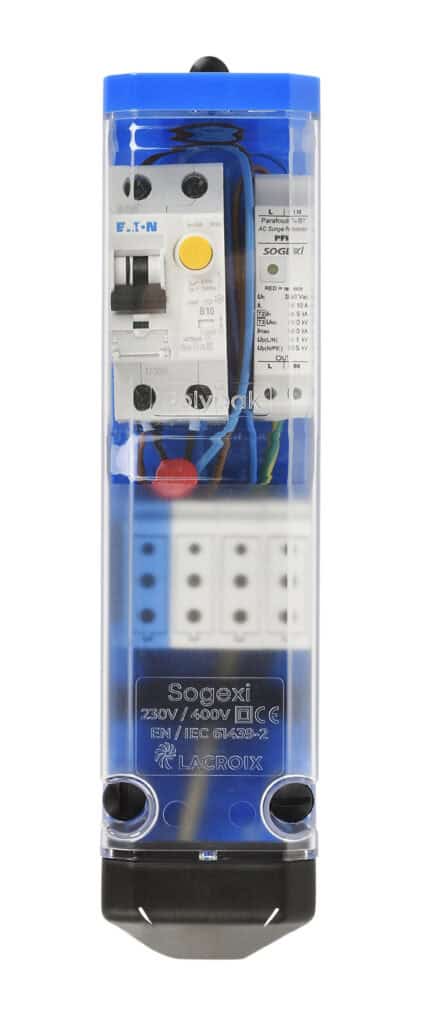

Polypak, the latest addition to the range with upgradeable IP
The Polypak is a junction box designed for masts with a minimum internal diameter of 110 mm, enabling the connection of up to 2 x 35 mm² network cables or 3 x 25 mm² cables and 4 luminaire cables. It offers great modularity, with the possibility of integrating high and/or low modules or terminal blocks and features a scalable and reversible IP system (from IP44 to IP54). Its removable terminal block support and transparent top window simplifies on-site installation and maintenance.

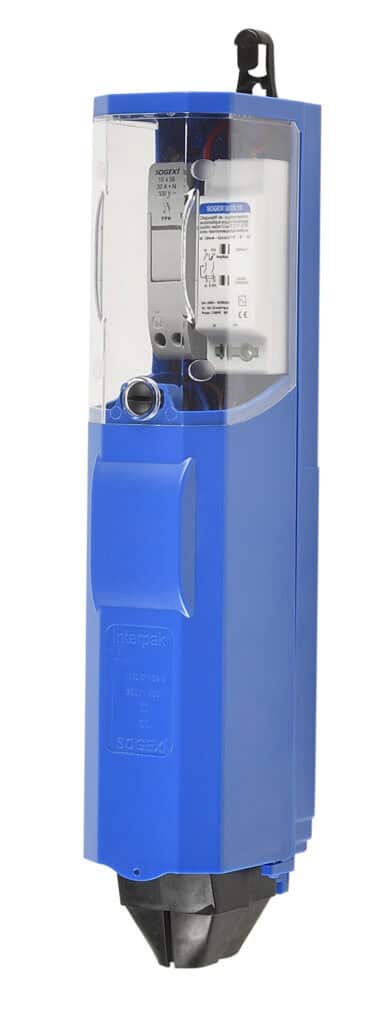

Interpak, the modular solution by excellence
The Interpak is a junction box designed for masts with a minimum internal diameter of 110 mm, offering maximum capacity with its three levels. It allows the connection of up to 3 x 35 mm² network cables or 4 luminaire cables and features modular functionality thanks to an additional intermediate support. Its removable terminal block system, easy access via independent covers and transparent top cover ensures fast, safe installation and maintenance.

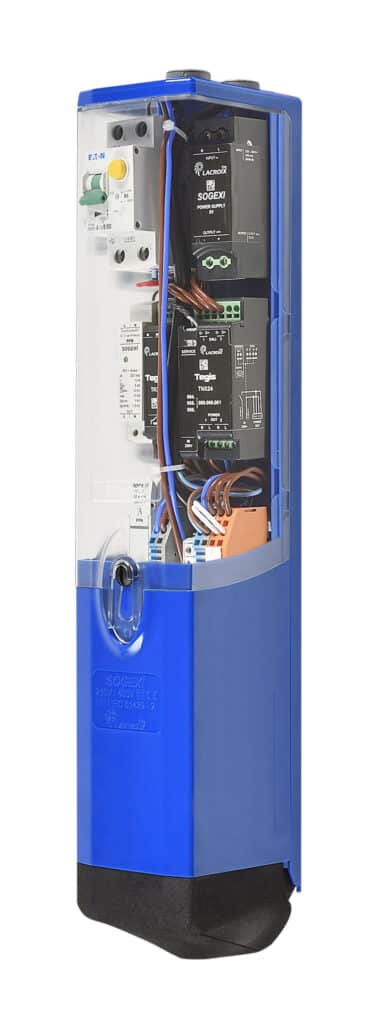

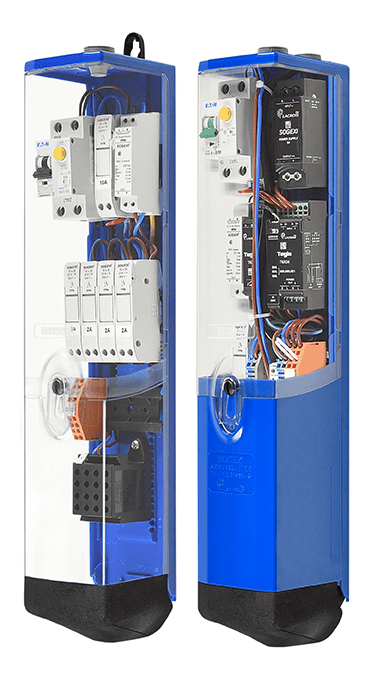

The Europak, unrivalled capacity
Offering the largest capacity on the market, and specially designed for smart lighting, the Europak is a 4-stage junction box that can accommodate up to 3 x 35 mm² network cables and 5 luminaire cables. It features a patented DIN rail mounting system and terminal block support, offering exceptional modularity and flexibility. Its long, transparent top cover facilitates access to protection devices, and its upgradeable design simplifies installation and maintenance.

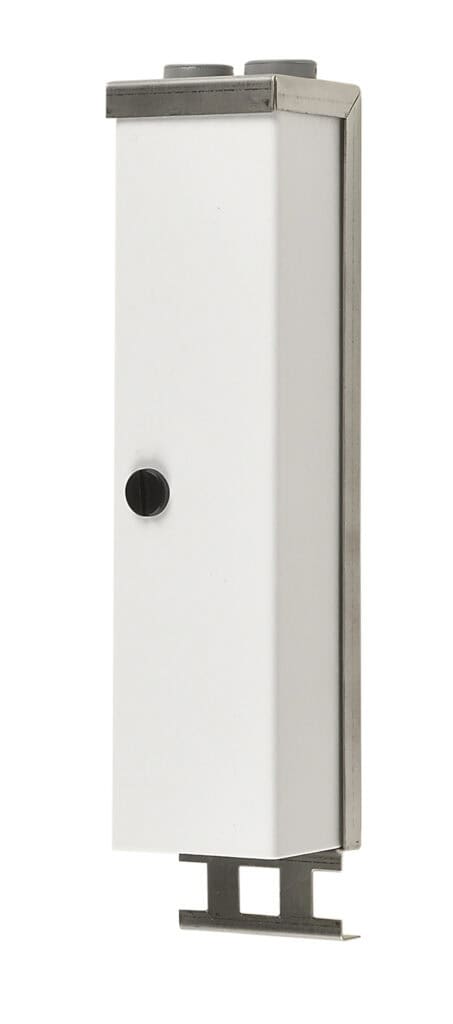

The Midipak, compact and strong!
The Midipak is a tough, compact Class 1 junction box with a stainless-steel base. Ideal for small masts, it comes in two sizes. Custom-designed, it incorporates a specific ground terminal for centralizing all grounded elements, while guaranteeing secure fastening with PUK flanges and practical closure with a ¼ turn captive screw.
