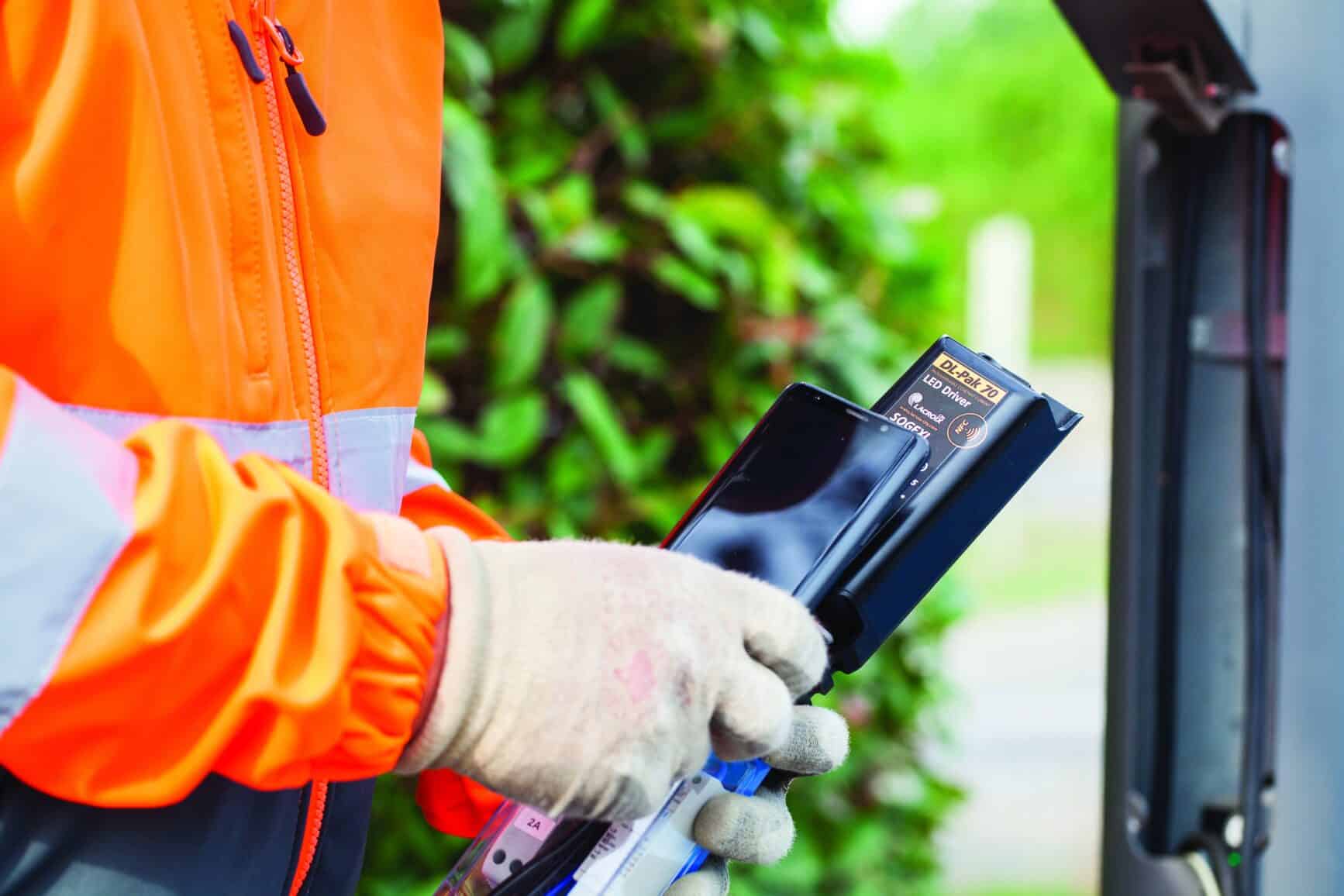

While they can be installed inside the luminaires, LACROIX drivers can also be positioned directly at the base of the pole. The benefits are efficient installation and maintenance : you can easily access the driver without having to use a costly forklift truck.
All our drivers are made in France, guaranteeing reliability and quality!
They can be easily configured via the My DL-Pak application, for NFC with power switched off and DALI or Bluetooth with power switch on (with the SETBOX).
Choosing our solutions, will reduce your energy ,consumption, significantly cut your maintenance costs and make your work easier.

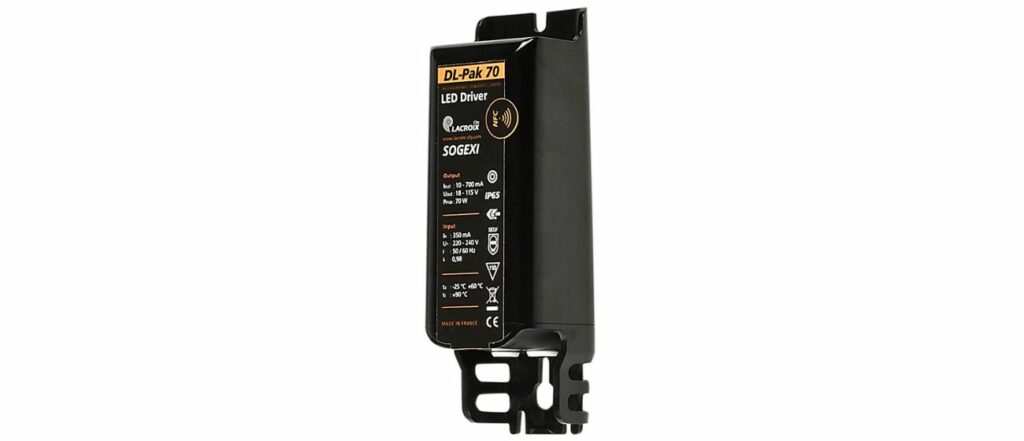

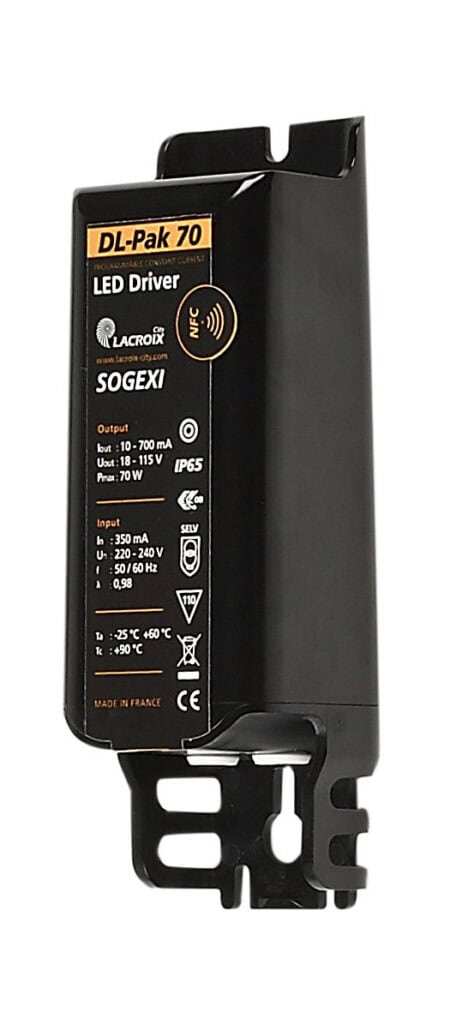

The high efficiency DL-Pak 70 LED driver!
Designed and manufactured in France, the DL-Pak 70 driver has been developed to deliver exceptional performance while guaranteeing reliability and durability.
Suitable for both new and existing installations, thanks to its wide power range, it enables maintenance teams to manage their work more easily, using just one product reference.
- Configurable current from 10 mA to 700 mA
- Number of LEDs: 6 to 34 LEDs
- High energy efficiency: >=92.5
- Optimized power factor: 0.99
- Protection class: IP65
- High dimming and full-power performance over a wide operating range
- Excellent resistance to network disturbances
- Very low inrush current, optimizing the number of drivers per feeder
- High energy efficiency and optimized power factor, particularly in the set-back phase
- Isolated driver (SELV) for enhanced safety
- Universal solution for powering your LED lighting, with a power range from 0.25 to 70W
- Flexible mounting in light poles, or in lanterns as required

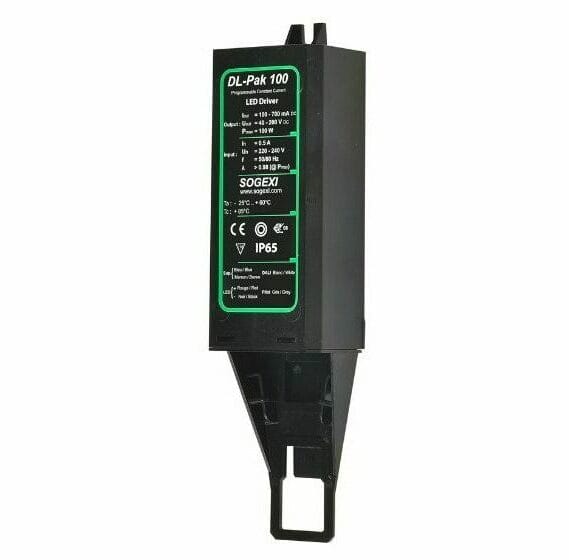

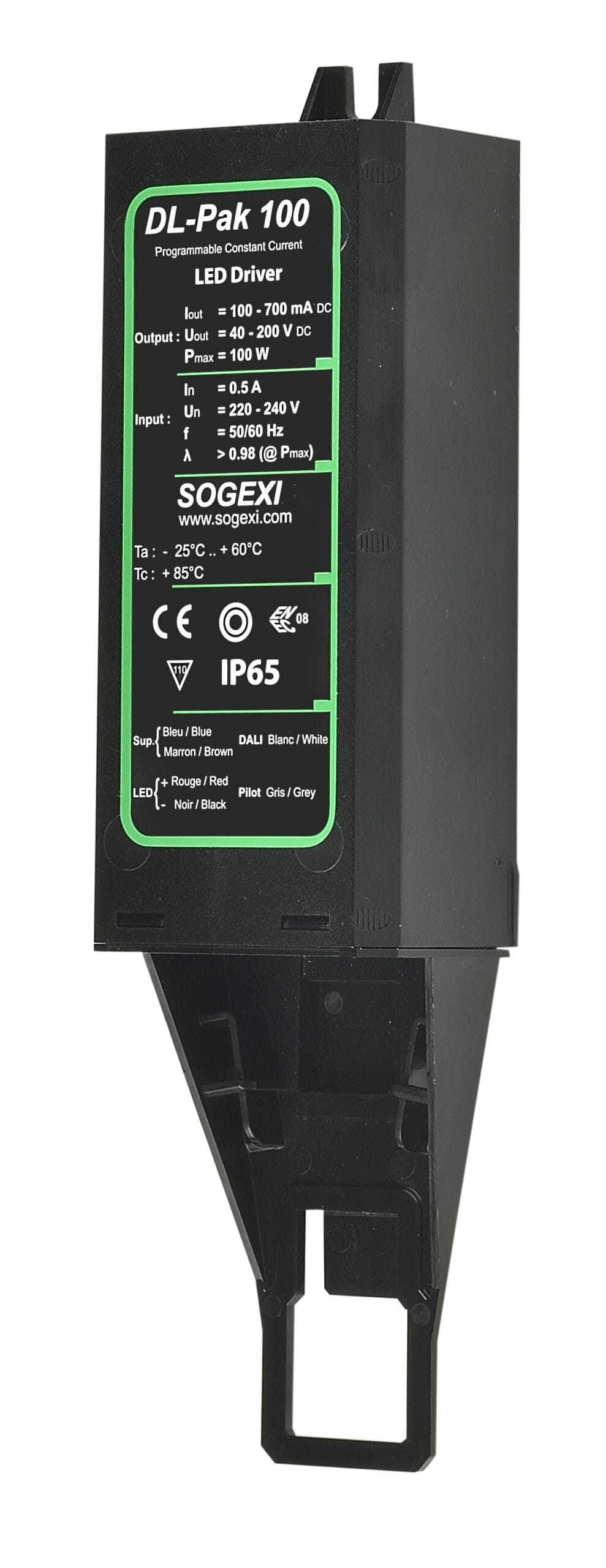

The flexible DL-Pak 100 driver!
The DL-Pak 100 LED driver is designed to optimize maintenance while offering very high performance for your LED lighting. Available in both luminaire and pole versions.
- Configurable current from 100 mA to 700 mA
- Number of LEDs: 12 to 100 LEDs
- High energy efficiency: 95%.
- Optimized power factor: 0.98
- Protection rating: IP65: pole and luminaire version
- Protection class: IP21: luminaire version only
As an extension to the DL-Pak 100 driver, the main difference between the DL-Pak 100L and the DL-Pak 100 lies in its application and installation features:
- Installed directly in the luminaire, for more discreet integration, and often used for installations where space is limited.
- A direct pilot wire input, enabling it to be connected to detection systems such as presence sensors or lighting control devices to optimize energy management.
- Greater flexibility for specific applications such as presence detection and integration with lighting control systems, which can lead to additional energy savings and intelligent lighting management.

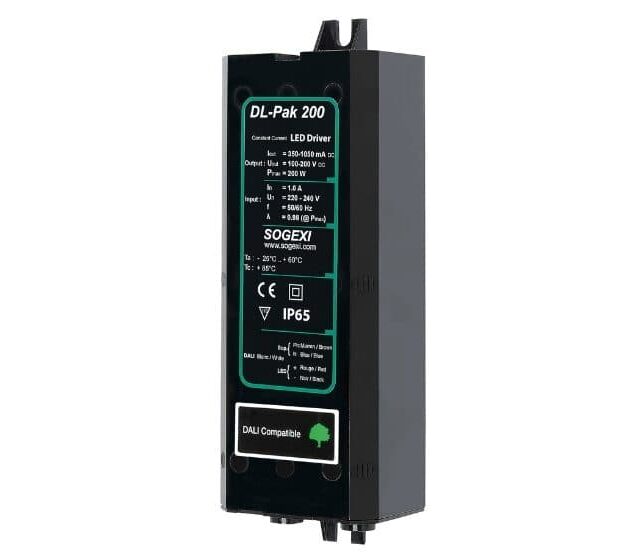

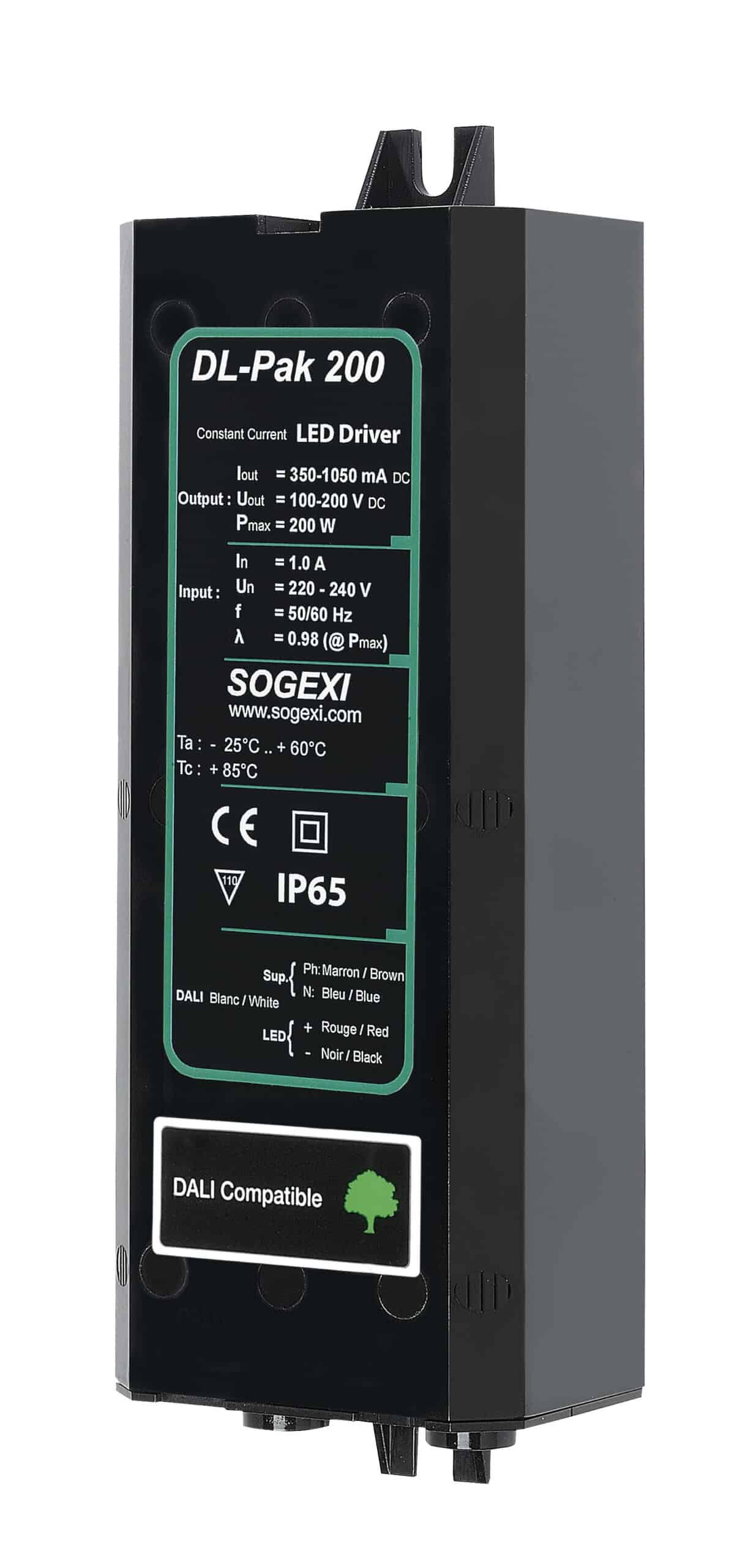

The powerful DL-Pak 200 LED driver!
Designed for applications involving higher wattage luminaires, the DL-Pak 200 offers a robust, high-performance power supply solution for your LED lighting, providing great flexibility and optimized energy management.
- Configurable current from 100 mA to 2100 mA
- Number of LEDs: 12 to 60 LED
- High energy efficiency: 96%
- Optimized power factor: 0.98
- Universal solution for powering your LED lighting, with a power ranging from 12W to 200W
- Protection class: IP65
All our drivers offer additional energy savings through autonomous dimming scenarios. However, because they are installed on high-power applications, savings can be even more significant with the DL-Pak 200.

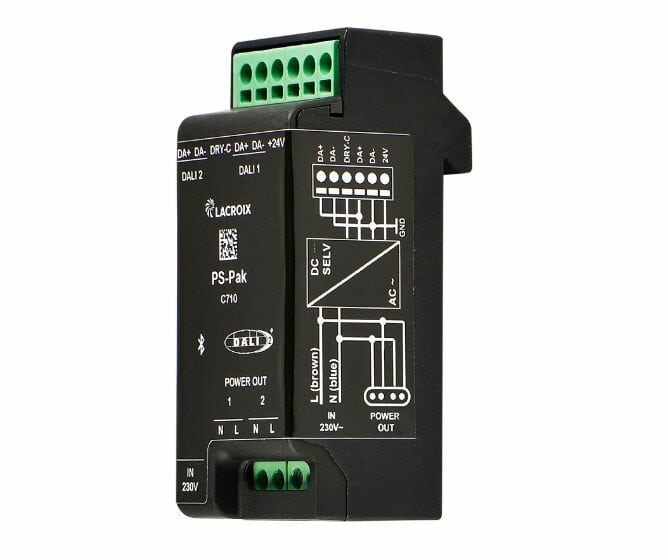

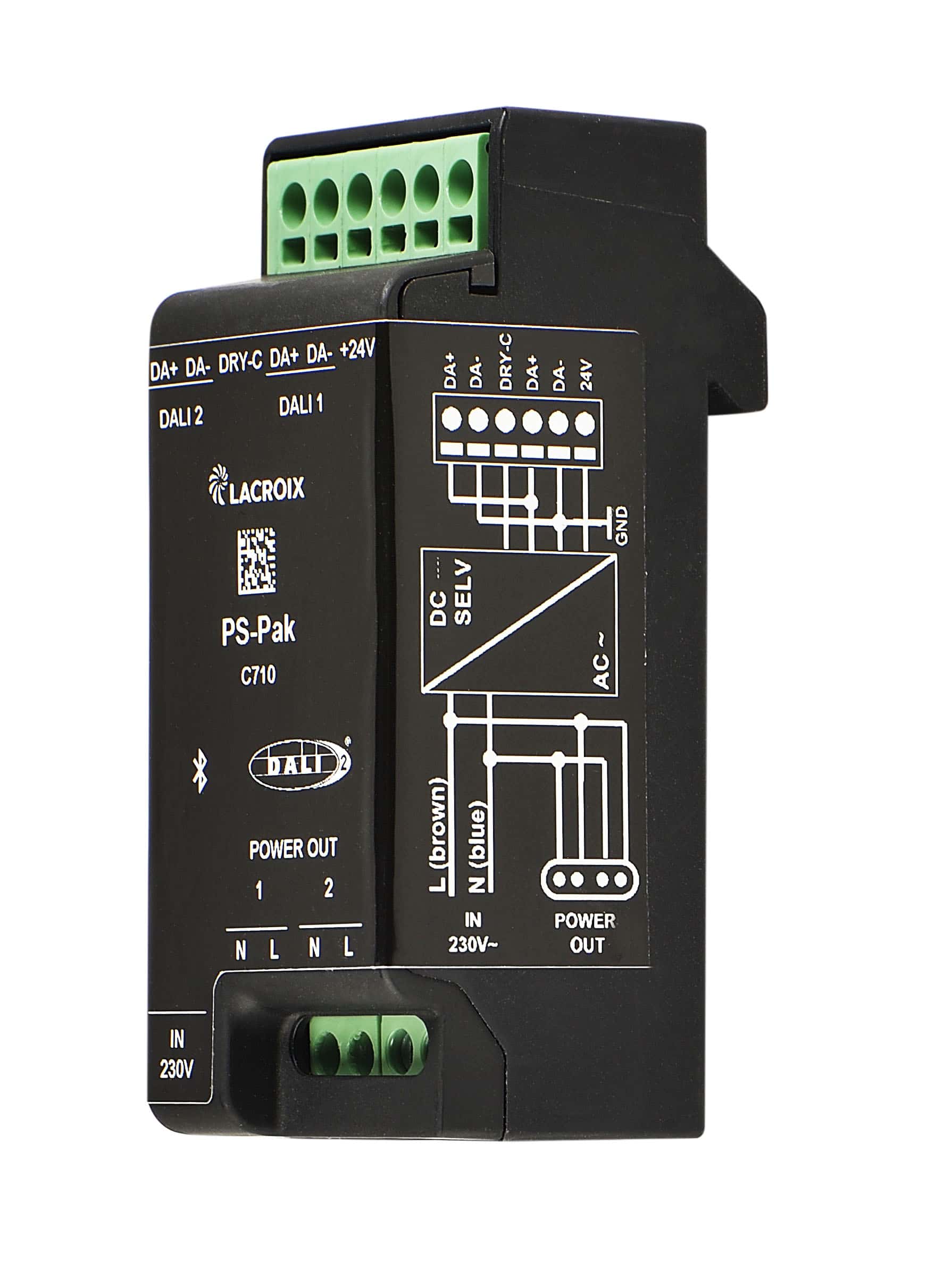

The PS-Pak module, intelligent and compact!
The PS-Pak module is an innovative and versatile solution for street lighting, combining two essential functionnalities in a single pole-mounted module. It enables local management of lighting installations, while offering considerable advantages in terms of flexibility and energy efficiency:
The PS-Pak is a 2-in-1 pole-mounted module which is installed in the junction box in the base of the light pole. It combines two functions:
- 24V and DALI bus power supply for a standardized Zhaga socket installed outside the lantern
- Driver setting without having to open the ole pdoor or use a gondola, facilitating maintenance and adjustments for easy control of all types of DALI, DALI2 and D4i drivers, with Bluetooth control via the free of charge My DL-Pak app (Android and iOS compatible).
The PS-Pak offers great installation flexibility and can be installed in a wide variety of configurations (such as pole-mounted, concrete-mast or facade-mounted installations).
Thanks to its modular, scalable design, it not only simplifies local management, but also optimizes energy savings across the entire street lighting installation.
This makes the PS-Pak an ideal solution for modernizing and optimizing street lighting, while guaranteeing user comfort and easy maintenance.
As with the drivers, the PS-Pak module can be easily configured via the My DL-Pak application, with switched on power via Bluetooth.

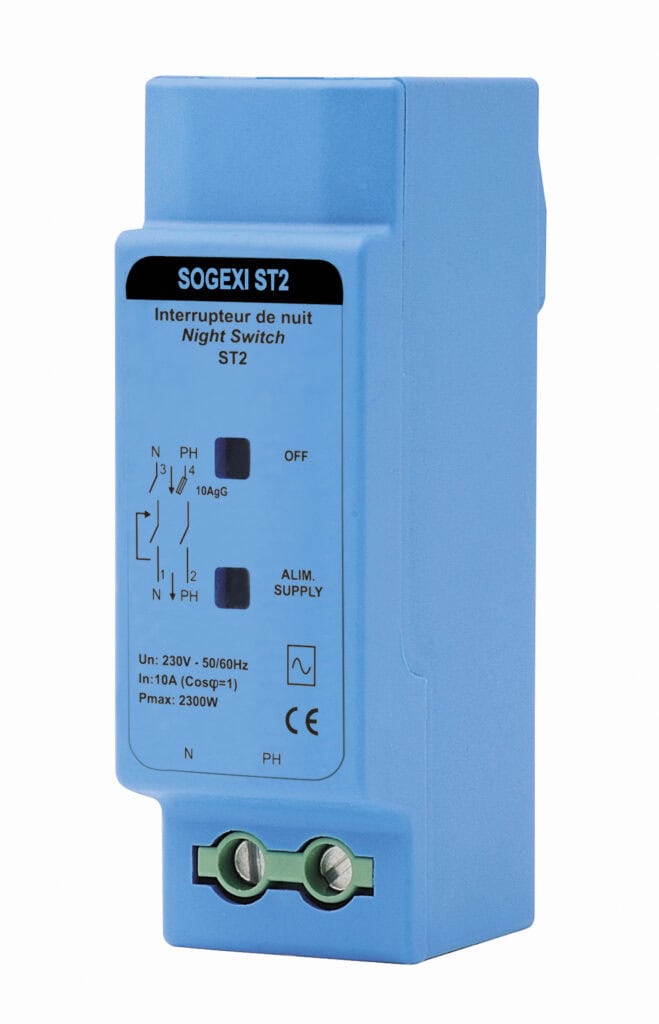

ST2 night switch
The ST2 night switch manages the switching on and off of lighting systems according to environmental conditions (for example, depending on natural light or presence). This reduces energy consumption by avoiding unnecessary lighting during the night or outside scheduled hours, thanks to intelligent autonomous management of illuminations (fixed or temporary) and non-critical lighting.
Very simple to install and use, its compact dimensions make it easy to integrate into our standard junction boxes.
