PS-Pak module

The PS-Pak is a 2-in-1 mast pole-based module that combines two functions:

1. Power supply for a standardised Zhaga socket installed outside the lantern:

  • +24V power supply,
  • DALI bus power supply.

The PS-Pak is compatible with the LACROIX standardised Zhaga socket EaZy-Pak in one and two connectors.

2. Configuration of the light parameters with My DL-Pak free application (Android and IOs).

With the PS-Pak, you can optimise your street lighting installations and your budget, with a modular, scalable solution.

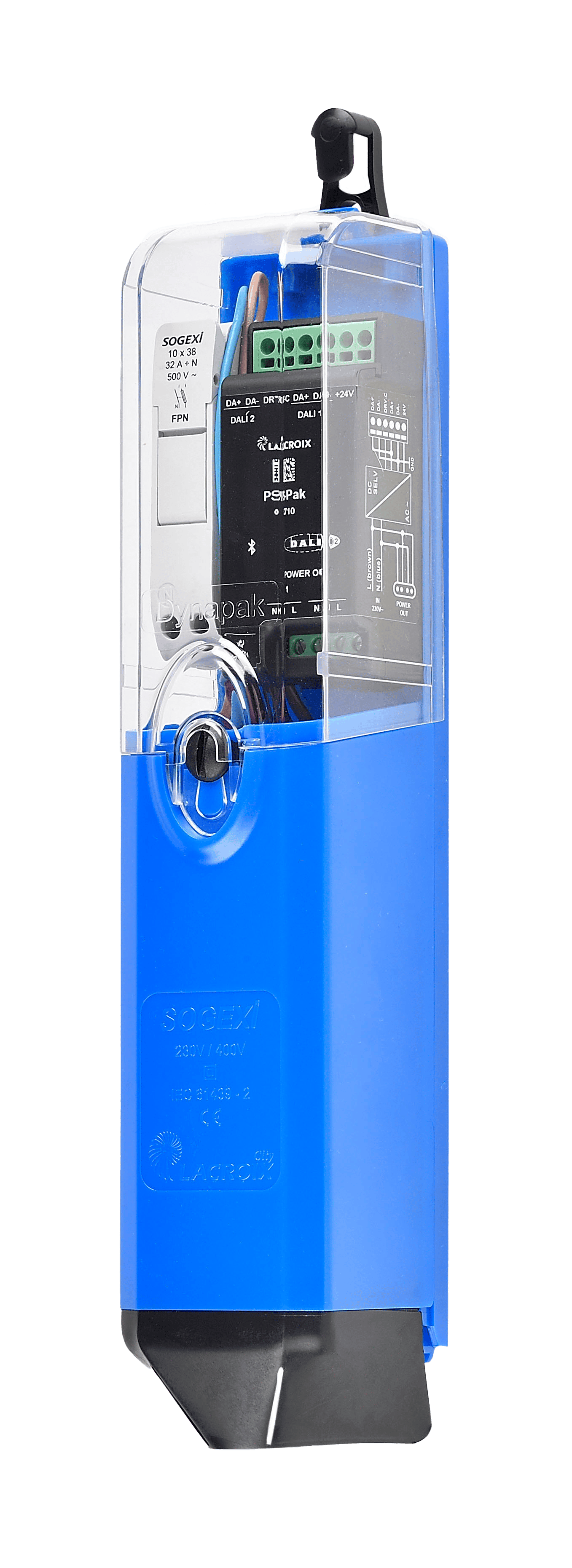

Available pre-wired in junction boxes, ready to install.

Benefits

  • Easy set-up of all types of DALI,DALI2 and D4i drivers, via Bluetooth with My DK-Pak application.
  • Compatible with street-lamp base, wood/concrete mast and facade installations.
  • The set-up is done light point by light point without opening the hatch and without aerial lift.

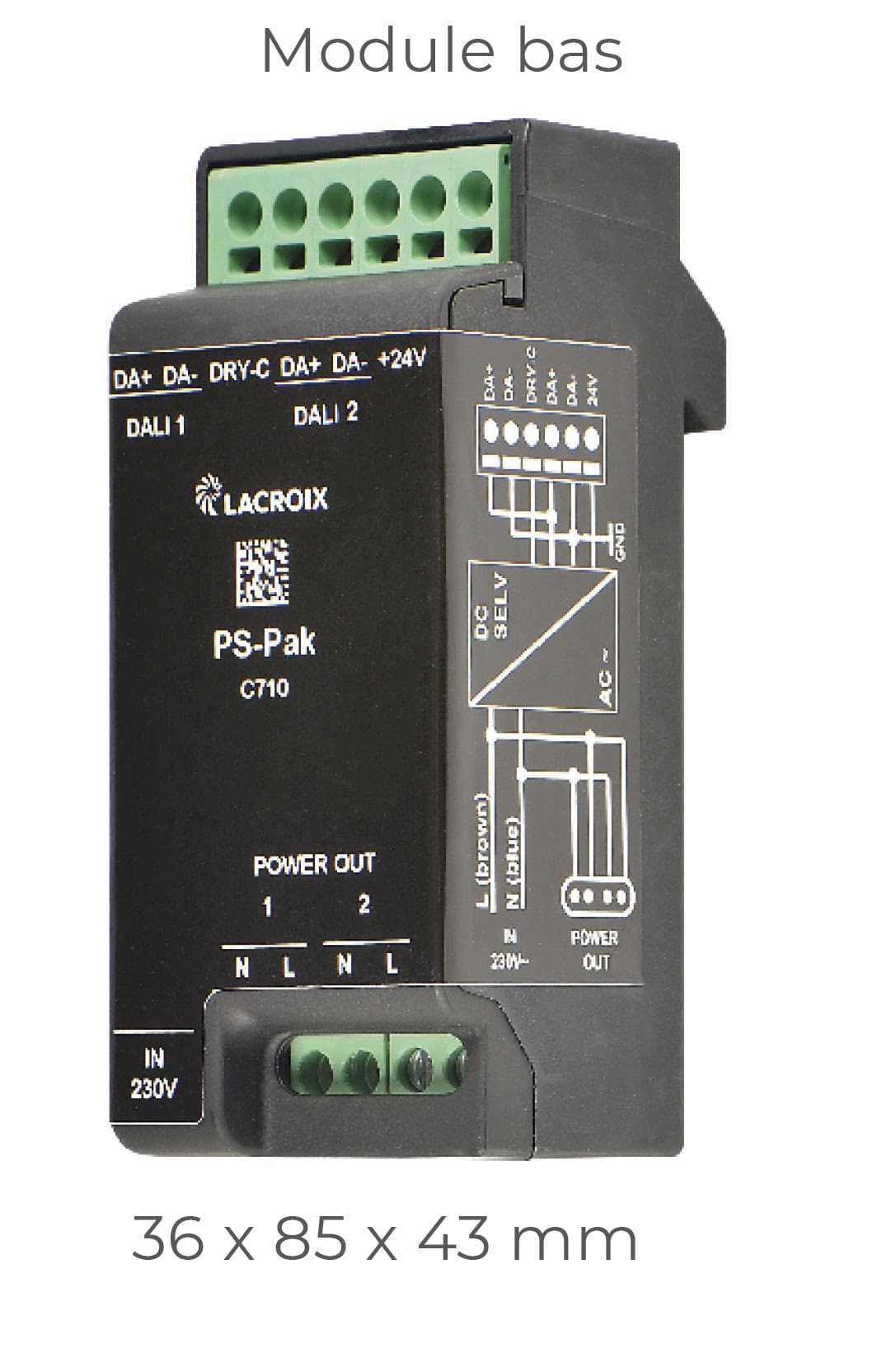

Technical characteristics

Mechanical characteristics:

  • Protection class: IP2X in accordance with EN/IEC 60529
  • Main material: polyamide.
  • Operating temperature: -25° to +50°C.

Installation:

  • DIN rail, 2-modules (36 mm).

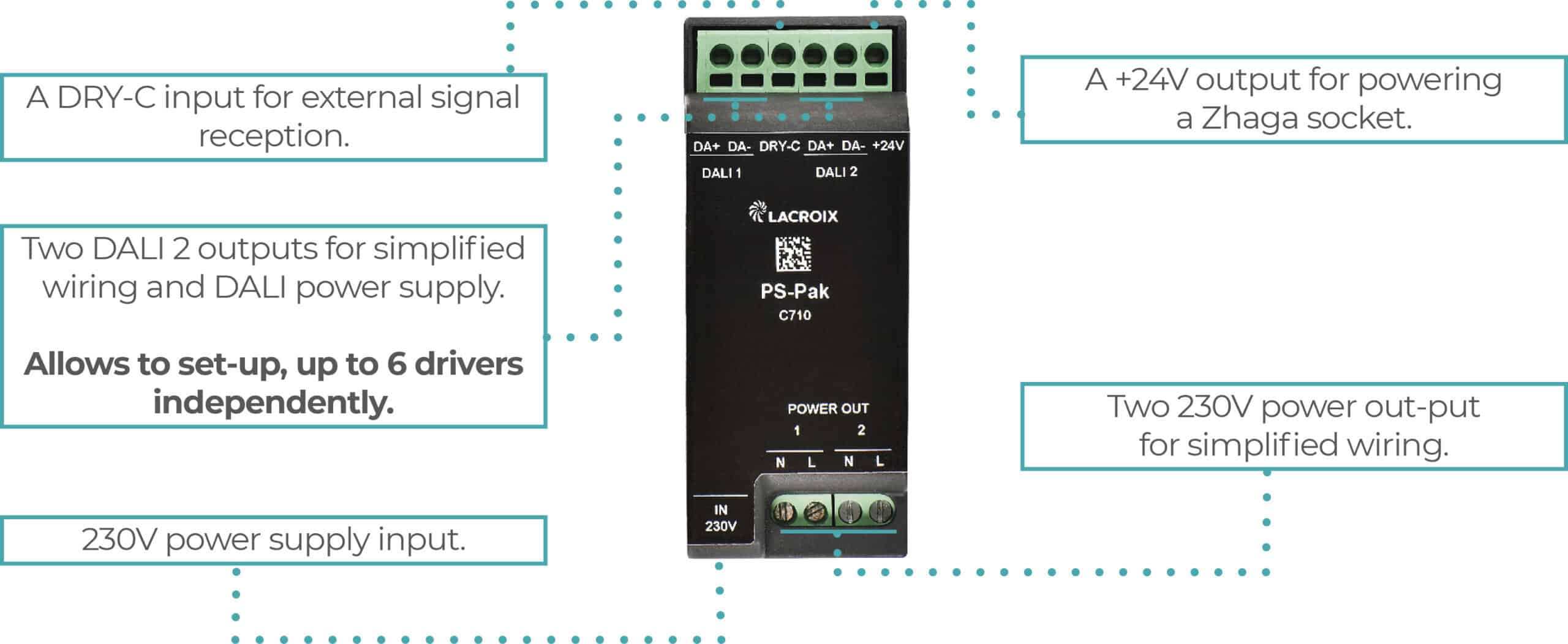

Type of connection and power supply:

  • Mains input: HO5V2K 1 mm² type wires.
  • Power OUT: 30-14 AWG / 0.05-2.5 mm² screw terminal blocks.
  • DALI / DRY-C / +24V OUT: 24-14 AWG / 0.2 – 2.5 mm² spring terminal block.
  • Power supply: +230 VDC.

PS-Pak module

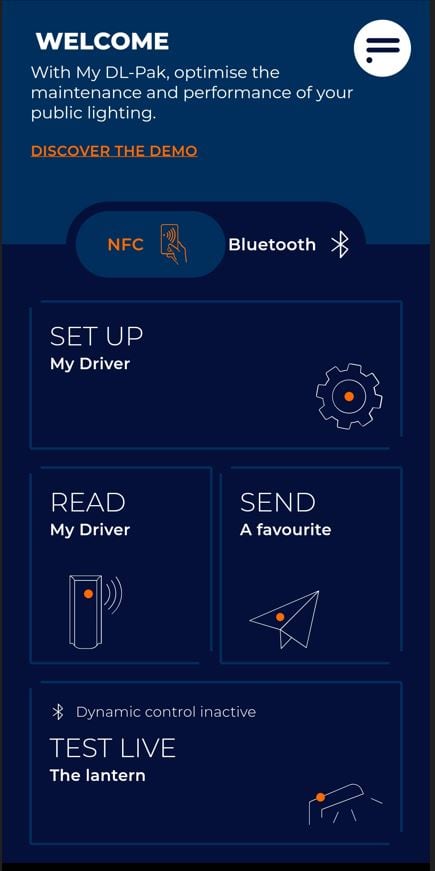

My DL-Pak Application

For a simple and intuitive configuration of your installation.

Set-up your installation in complete security thanks to a secured connection with a unique login and password.

Simple access to settings and information-reading functions.

Simple reading of driver data** (operating time, overvoltage and short-circuit diagnostics).

**Conditionned by the data being fed back by the driver.

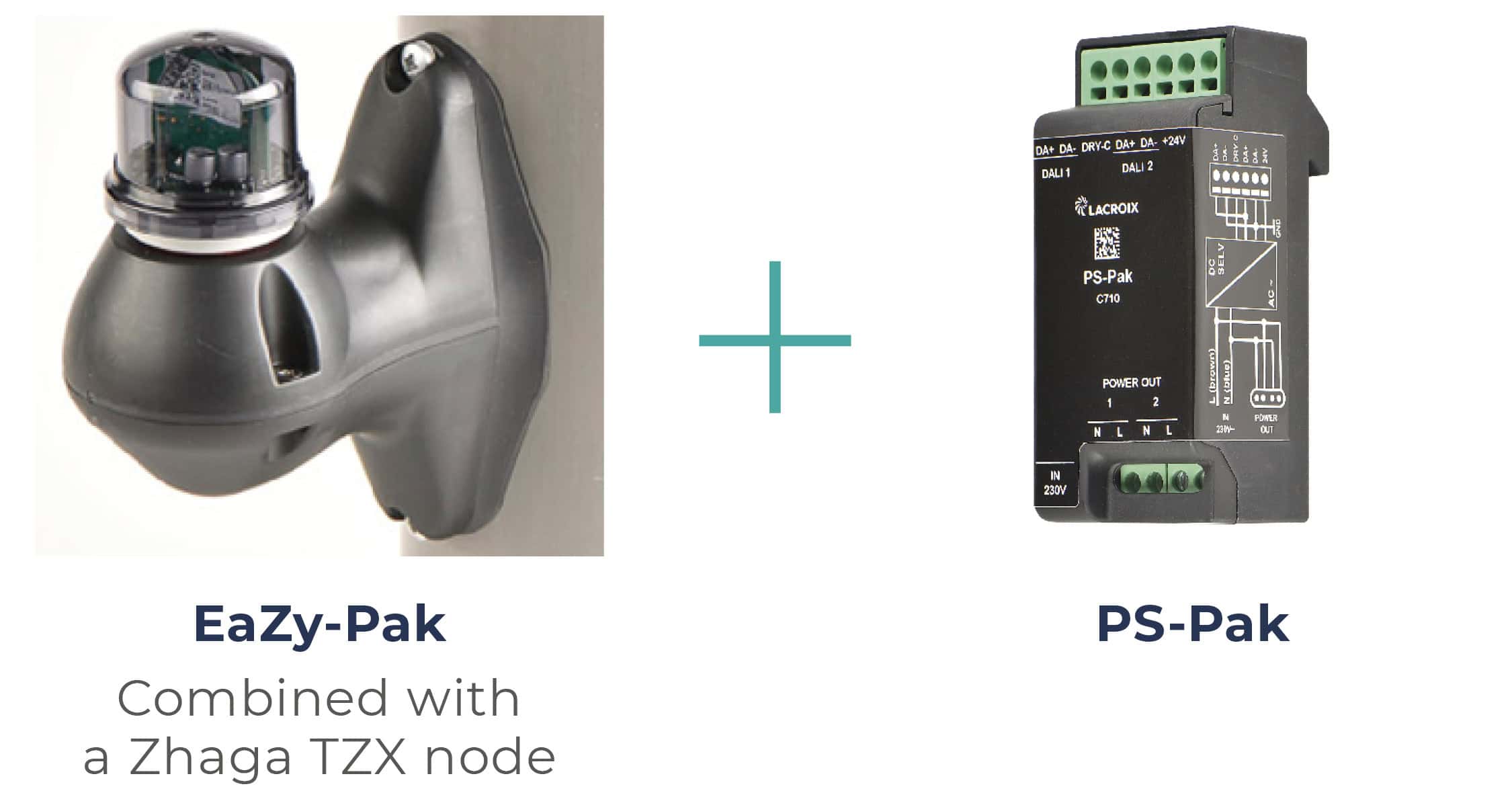

Power supply mode

In power supply mode, the PS-Pak, combined with the EaZy-Pak, enables one or more standardised Zhaga nodes to be powered. This makes it possible to transform an LED luminaire not natively equipped with a Zhaga socket into a luminaire with smart management.

Programming mode

The PS-Pak is ideal to configure independently up to 6 drivers for a single light point:

Allows you to adapt the lighting to different use cases.

Compatible with multi-driver and multi-temperature LED lanterns.
