DL-Pak 70 - Lacroix Environment

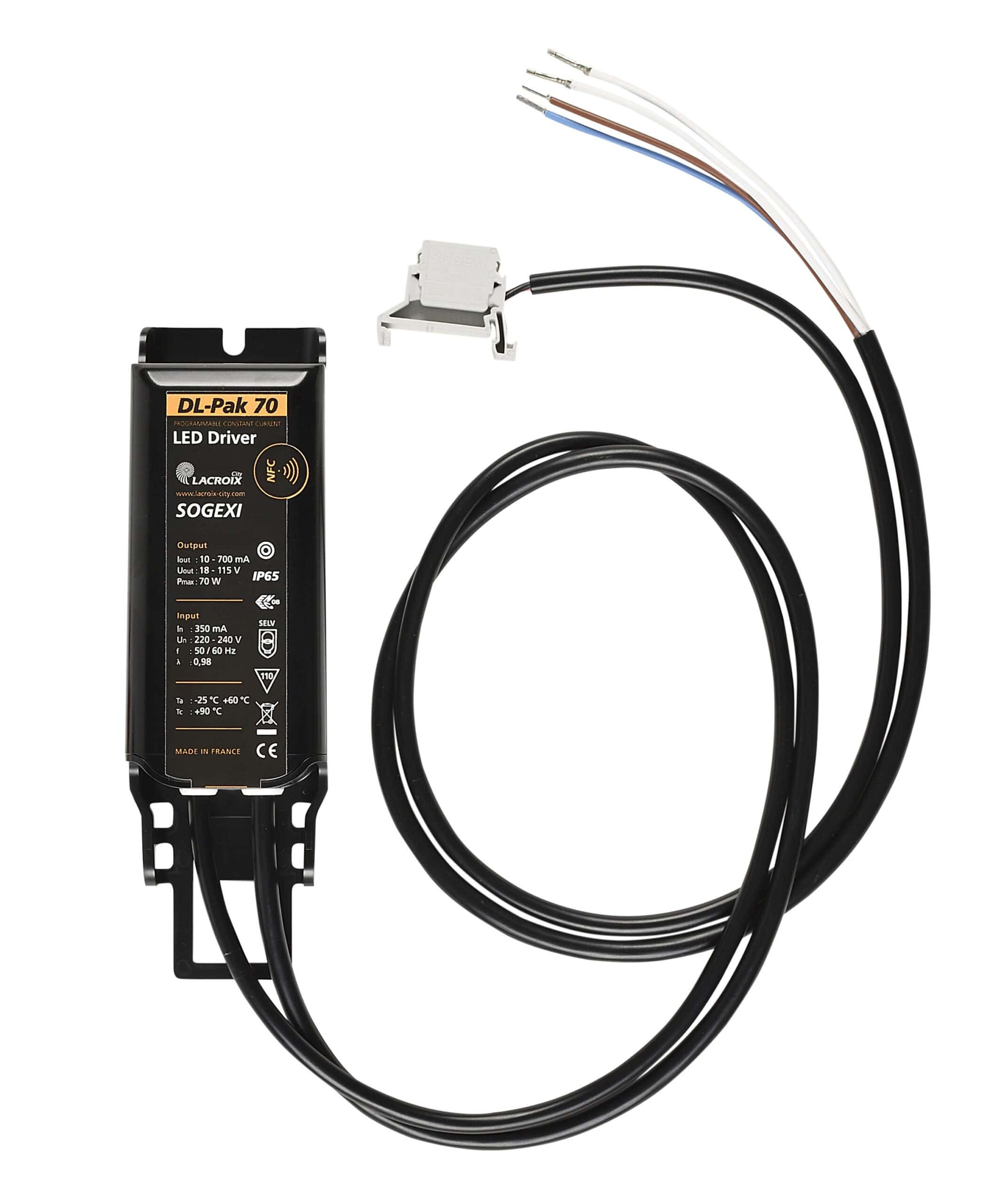

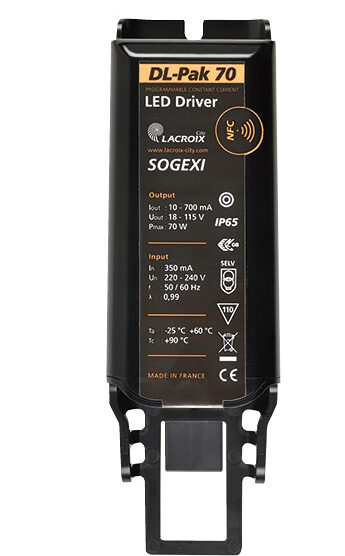

Designed and manufactured in France, the new DL-Pak 70 driver optimizes maintenance and offers very high performance for your LED street lighting.

Advantages

Universal solution for powering your LED lighting thanks to its wide power range.

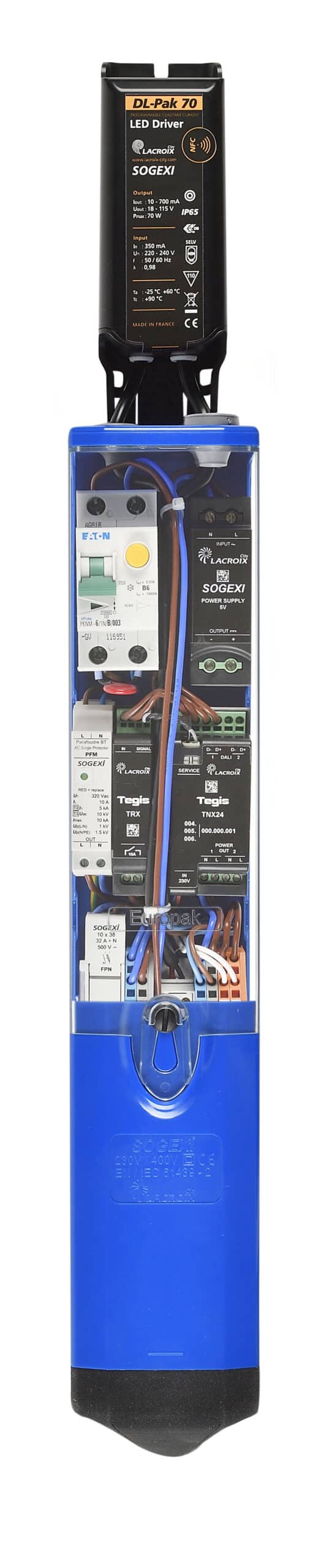

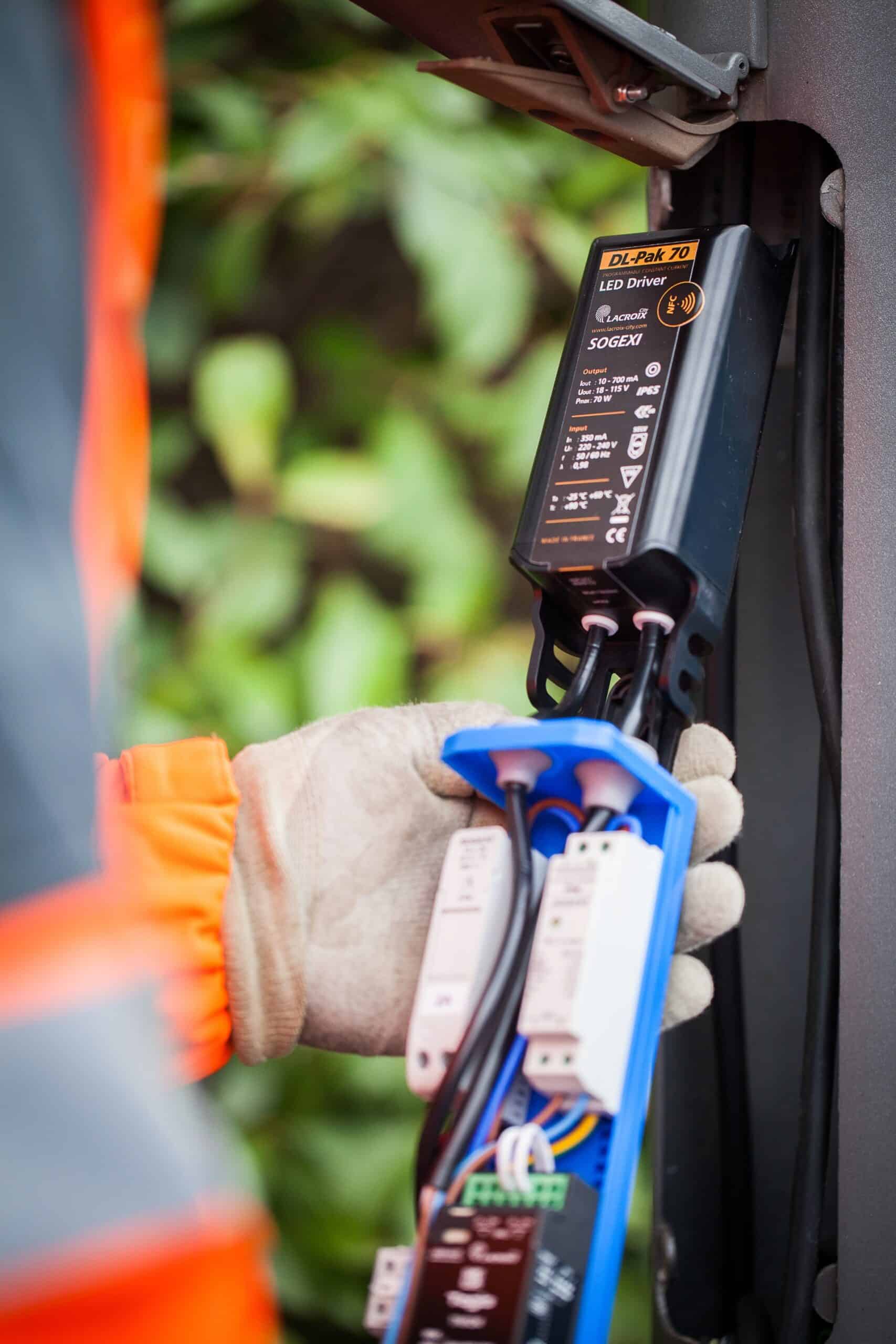

Installation at the lamppost base or in light fixtures (also possible)

High performance both dimmed and on full power over a wide operating range.

Simply configuration thank to the MyDL-Pak application, for power off via NFC and with Power on using DALI.

Designed and manufactured in France.

Mechanical Characteristics:

Environment :

Certifications :

CE
ENEC
SELV
Environnemental protection
Energy saving certificatest-Sogexi
The following energy savings certificates can be obtained:
RES-EC – 101 > 2.0 kWh cumac x P(W)
RES-EC – 102 > 1.6 kWh cumac x P(W)
RES-EC – 103 > 8.0 kWh cumac x P(W)
RES-EC – 104 > case 1: 9,300 kWh cumac x N luminaires > case 2: 7,200 kWh cumac x N luminaires

Electrical characteristics:

Power supply: 220-240 V / 50-60Hz
Electrical Class :Class-2 compatible, Isolated (SELV)
Output voltage : 18…115 V
Output Power: 0,25…70 W
Dimming range : 1,4 %…100 %
Output current : 10… 700 mA
Performance @ Pmax / 50% Pmax / 25% Pmax : ≥ 92,5 % / ≥ 91,5 % / ≥ 88 %
Power factor @Pmax / 22 % Pmax / 13 % Pmax : > 0,99 / ≥ 0,95 / ≥ 0,9
Inrush current / Pulse time : 20 A / 400 μs
Number of drivers per output (protection by DPN 16 A courve b) : Up to 17 DL-Pak 70 drivers
Comsumption in standby mode – dimming at 0% : < 0,2 W
Immunity to overvoltages (differential mode) : 7 kV
Immunity to overvolatges (common mode) : 7 kV

Smart Functions:

Light source : LED
Type of LED control : Constant current
Dimming functions : ITD, DALI, Pilot, DIM/V
Additional functions : CLO, POL
Configuration:
- Power off, contactless NFC, with MyDL-Pak, dedicated application, in workshop or on site
- Powered, in DALI

Product standards :
