- Every node is a transmitter, receiver and repeater.

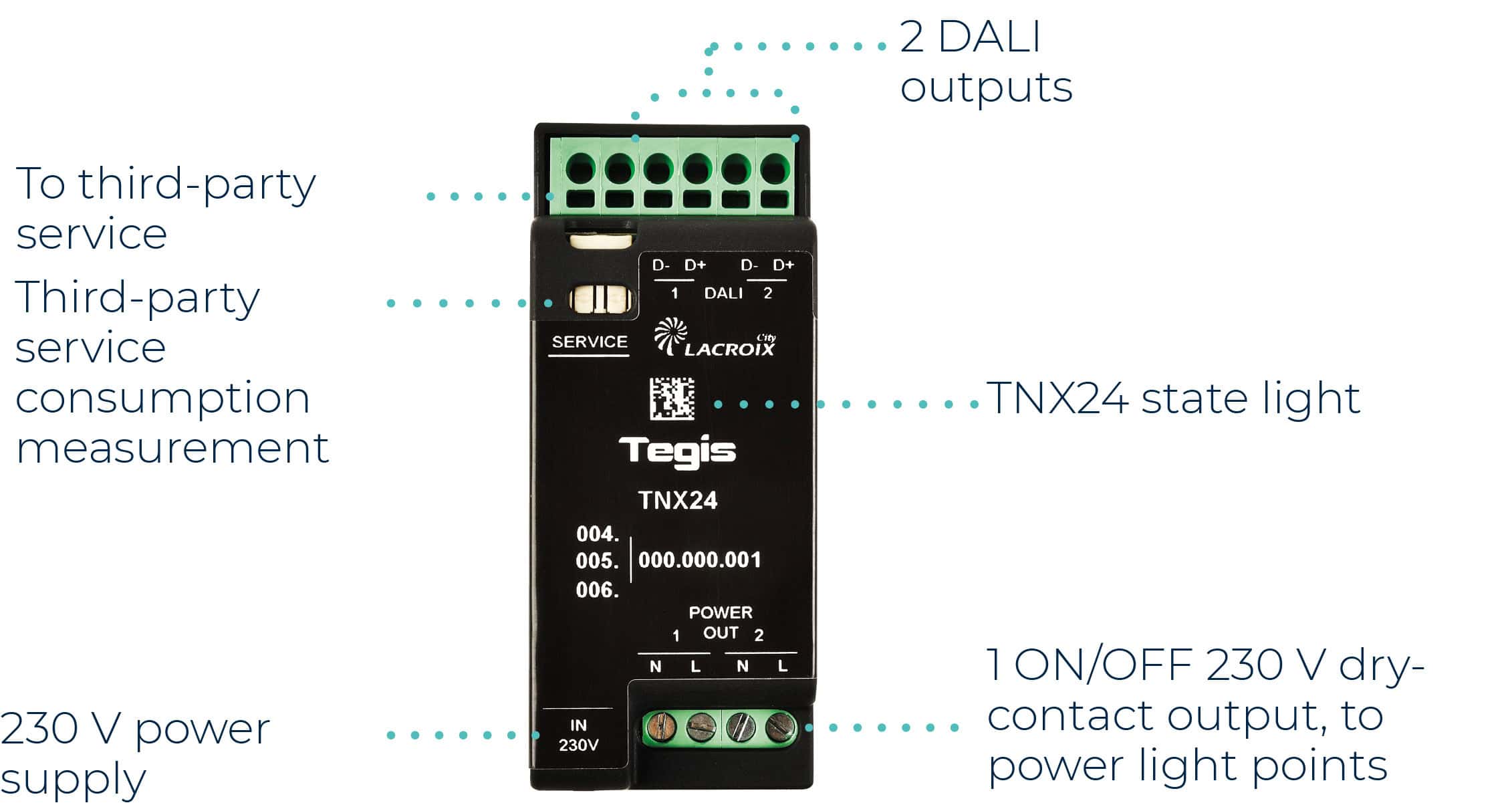

- 2 DALI outputs, up to 4 lighting fixtures per DALI output*.
- 1 consumption measuring device on all light points + 1 dedicated measuring device for third-party services.
- 3 unique addresses by TNX24:
- 2 for light points.
- 1 for third-party service Up to 150 unique addresses per control unit.
- Distance between 2 nodes: 150 m.
- Breaking power: 2 A – 230 V
- Dimensions in mm (W × H × D):
36 × 85 × 43 – 2 modules/ DIN Rail - Energy measurement class (active power):
Class 0,5 for light points - Class 1 for third-party services
- Standby power consumption:
0.55 W - Operating temperature: -25 to +55°C
- Operating voltage: 230 VAc Certification:
