The APS (Access Point System) communication gateway connects SLC
Zhaga and NEMA nodes to the Tegis WEB platform for remote management of public lighting installations.
The APS uses the radio mesh network (2.4 GHz Wirepas technology) to
communicate with the nodes.
The APS must be continuously powered and can manage up to 150 light points.
Positioned outdoors (on a pole or facade) or indoors (in a public lighting
cabinet), it can be easily installed on a DIN rail or with a bracket.
Advantages
Uses a self-forming and self-healing mesh network
Technical specifications

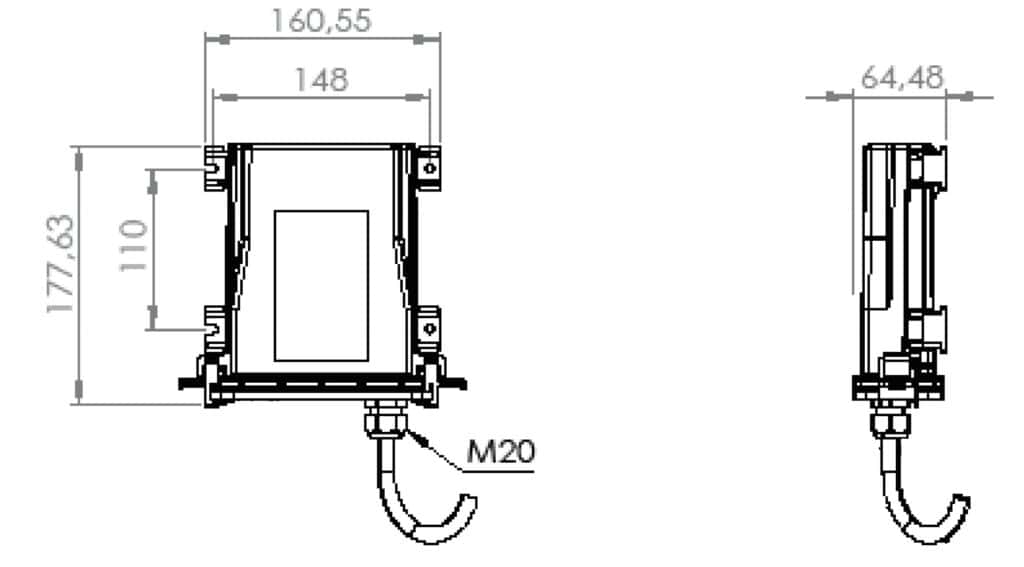

Mechanical specifications:
- IP66 and IK08 protection rating.
- Material: Polycarbonate.
Electrical characteristics:
- Operating voltage: 110V-240VAC.
- Frequency: 50-60Hz.
- Classe 2.
Radio communication:
- Wirepas-powered radio mesh network.
- Frequency: 2.4GHz.
- Modem: 2G, 3G, and 4G compatible.
Installation :
- Outdoors (on a pole or facade) or indoors (in a public lighting cabinet).
- Requires a permanent power supply
- Operating temperatures: -30°C to +52°C
- Standard mounting:
- DIN rail mounting with clips
(cabinet/indoor version) - Pole mounting with strap or
screws (outdoor version).
- DIN rail mounting with clips
Configuration :
- Range: Up to 150m in direct view.
- Programmable directly (OTAP) via the Tegis WEB platform.
- Available in 2 versions : Cabinet/Indoor & Outdoor
