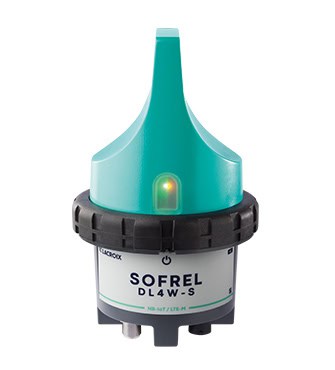

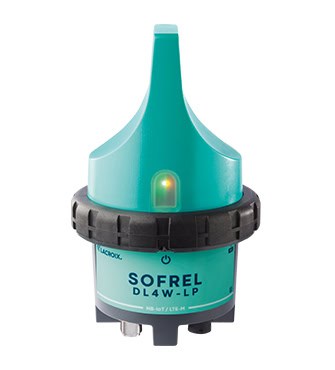

2G/4G LPWAN SOFREL DL4W Data loggers

The SOFREL DL4W range includes LS, LT, and OpenSensor data loggers specifically designed for drinking water and wastewater networks.

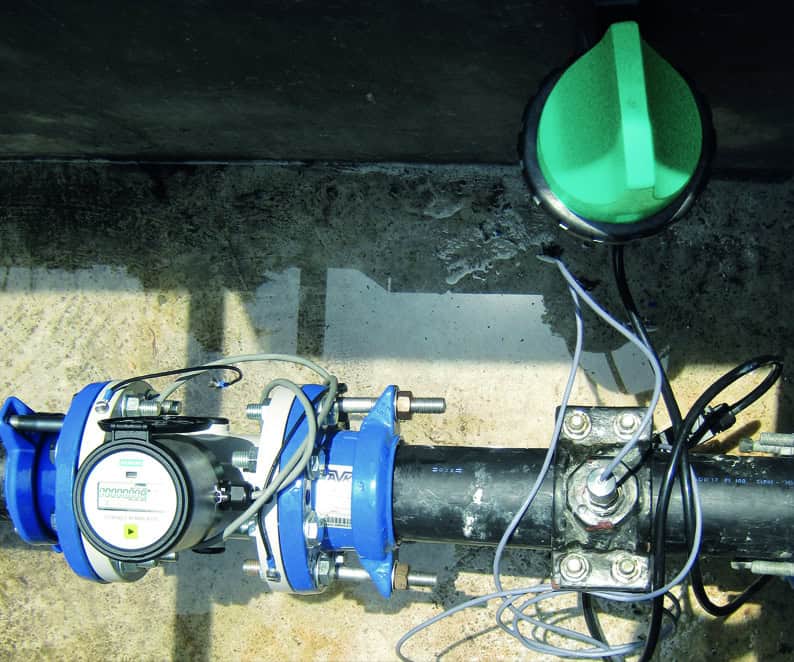

Waterproof and offering up to 10 years of autonomy thanks to their high-capacity lithium battery, equipped with a high-performance 2G/4G LPWAN modem and antenna, SOFREL DL4W data loggers are compatible with all instrumentation used in water networks.

Easy to deploy and simple to operate with the LX SCADA and WEB LS centralization and supervision software, DL4W data loggers are also compatible with all market SCADAs and third-party water operator applications.

SOFREL DL4W: Versatile Data Loggers for Network Performance and Monitoring

Rugged and Long-Lasting Data Loggers for Demanding Environments

Challenges specific to water networks are well-known:

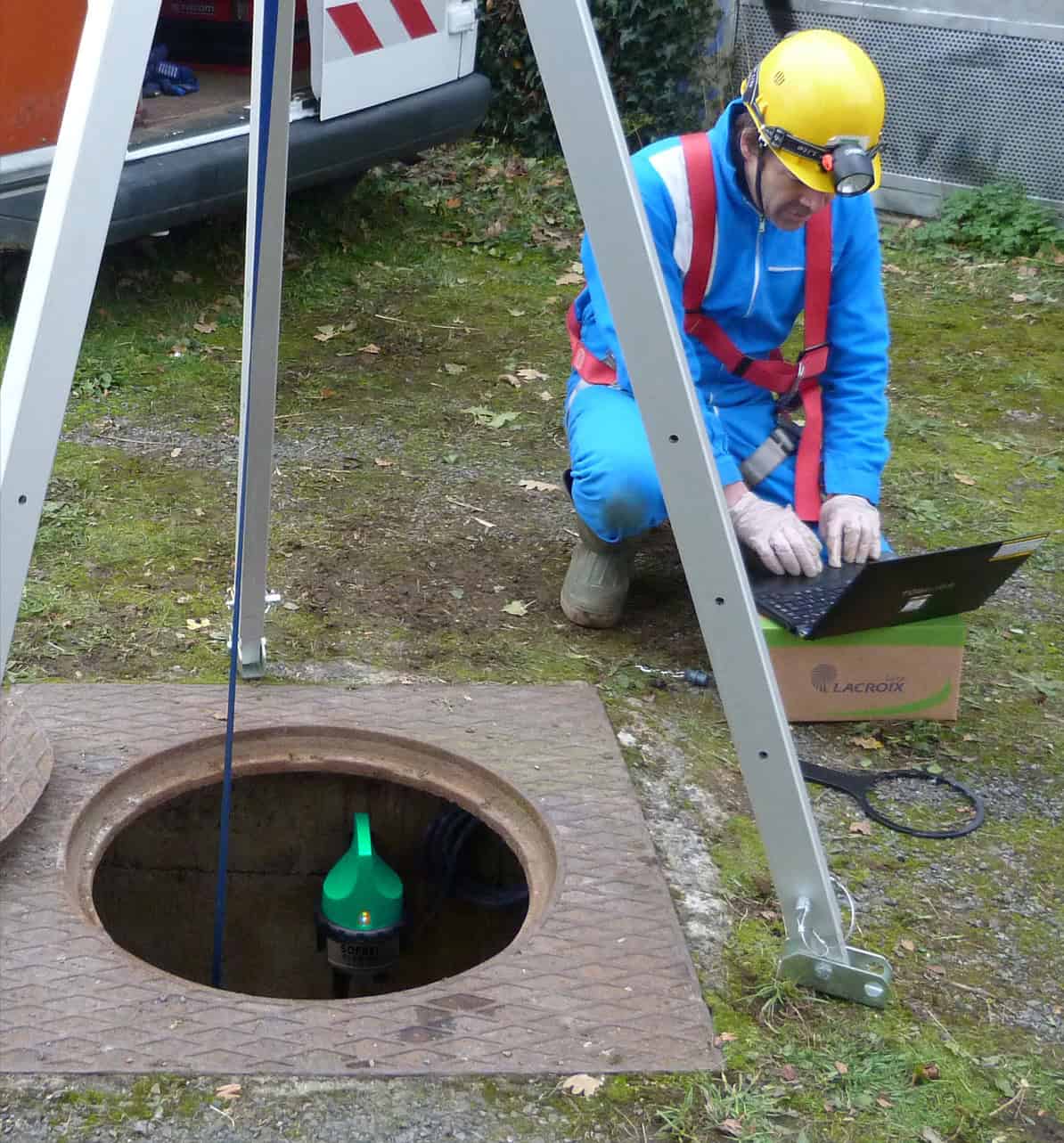

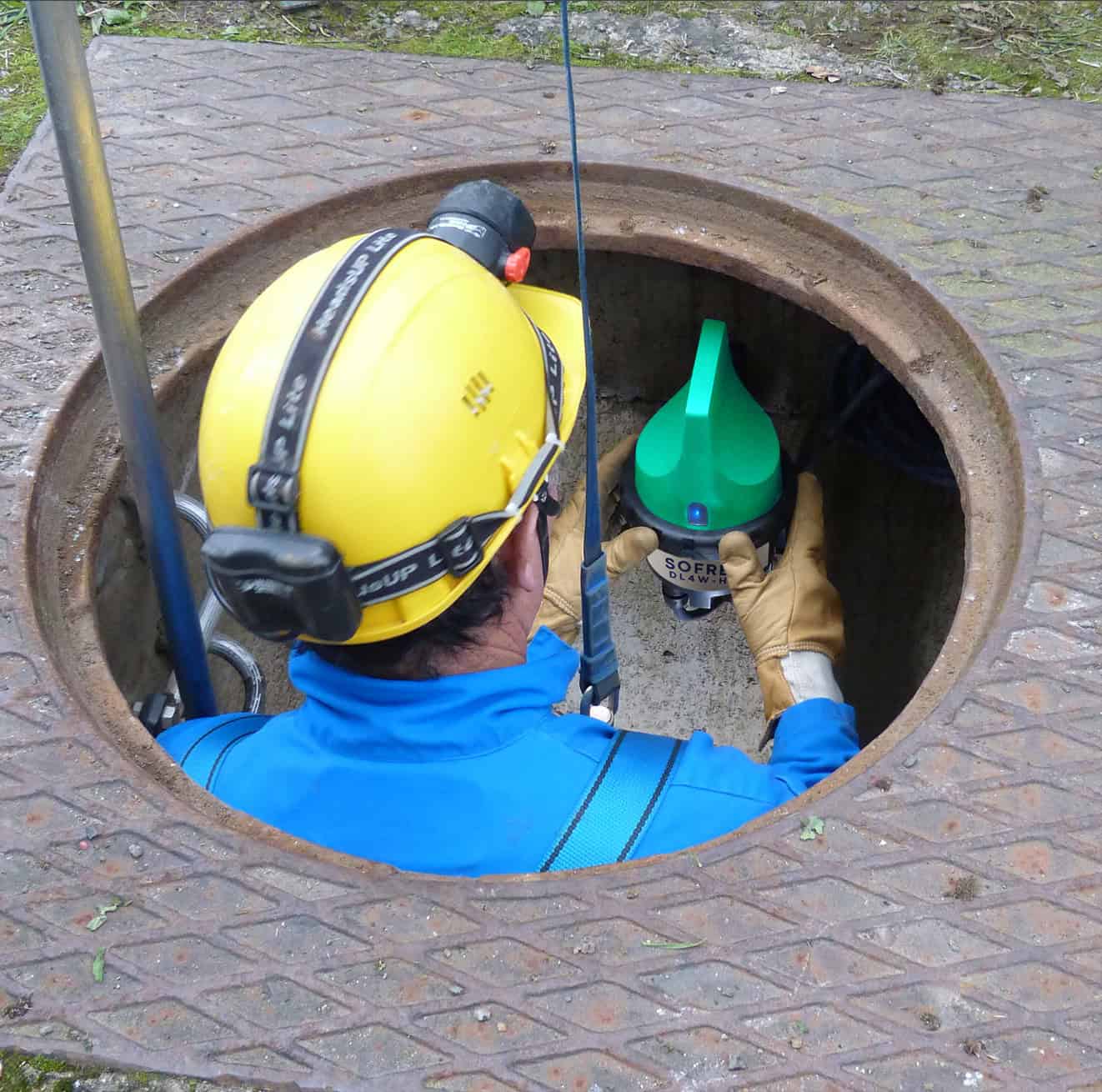

Underground equipment installation
Risk of prolonged flooding
Poor radio signal reception
Remote and difficult-to-access sites

To address these challenges, LACROIX offers a data logger range recognized for its robustness and reliability.

Thanks to high-quality electronic and mechanical design, these devices come with a 3-year warranty.

Découvrez la gamme data loggers SOFREL DL4W

DC69-Gamme SOFREL DL4W-Fr-2024-06

Data loggers Modbus

Data loggers Drinking Water Networks

Data loggers Wastewater Networks

Key Features of SOFREL DL4W Data Loggers

SOFREL DL4W data loggers, awarded at international trade shows, have been widely adopted by water network operators worldwide.

Since launch, additional functions and water-specific applications have enriched the SOFREL DL4W range.

Today, hundreds of thousands of devices deployed in remote and harsh environments (humidity, no electricity, weak GSM signal, etc.) deliver essential data daily to monitor and optimize water network performance.

As rugged and innovative IIoT (Industrial Internet of Things) devices, SOFREL data loggers offer numerous advantages:

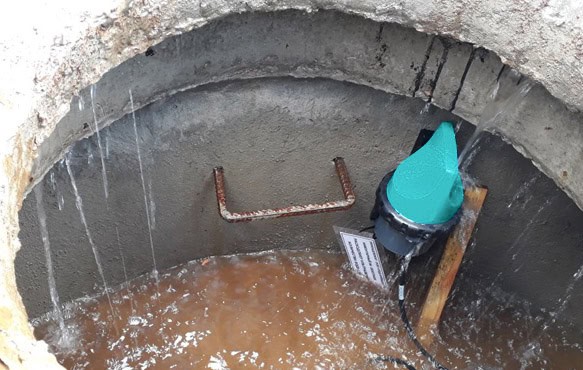

Enhanced IP68 Waterproofing

Often installed in chambers, SOFREL data loggers are frequently exposed to immersion. Thanks to their sealing system and military-grade connector, each logger is rated reinforced IP68 (certified 30 days under 4 meters), allowing operation even when submerged.

Despite being fully waterproof, the device can be opened onsite (no factory return) to access the SIM card and battery.

With its locking ring and clamp system, a simple hand twist is enough to reseal the device and restore full waterproofing.

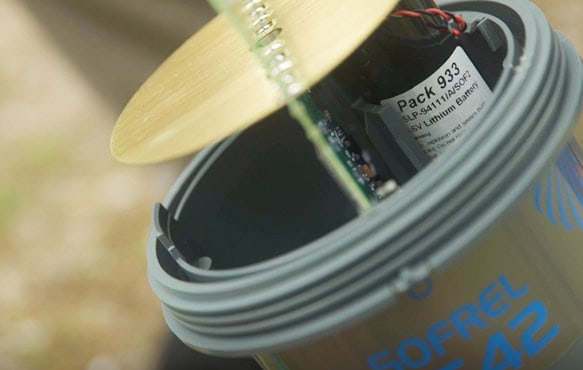

Battery and Power Management: Up to 10 Years of Autonomy

The high-capacity battery of SOFREL data loggers offers up to 10 years of autonomy, depending on the model and usage.

With low energy consumption, they reduce maintenance costs by limiting battery replacement operations.

Battery life can also be anticipated via remaining energy diagnostics. Battery replacement takes only a few minutes (no factory return) and does not interrupt device operation.

The OpenSensor High Power model features an EPS (External Power Supply) input for power via an external source (battery, mains, solar panel, microturbine, etc.). Ideal for RS485 connections and powering high-consumption sensors.

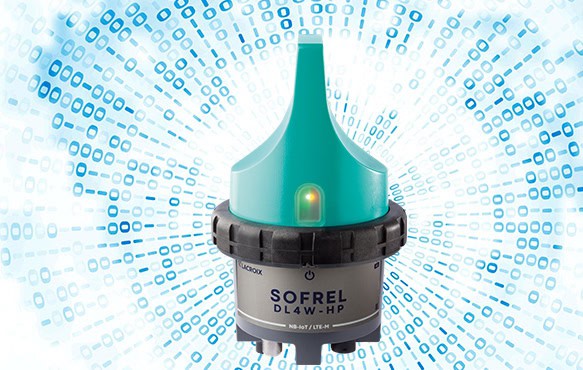

2G/4G LPWAN Network Compatibility for Extended Autonomy

4G LPWAN, NB-IoT, and LTE-M communication technologies address remote and underground site constraints while ensuring IP interoperability (plug & play).

Their low latency and deep indoor capabilities make SOFREL DL4W data loggers ideal for network monitoring under any conditions. They guarantee data transmission and integrity, helping operators make real-time decisions.

The 4G LPWAN network, optimized for IoT devices, further enhances DL4W’s autonomy.
